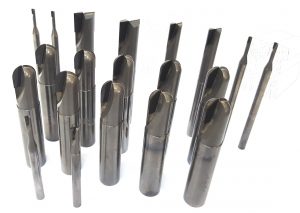

Prima Tooling manufactures PCD flat, torus and ball-nose end mills for high-speed machining of CFRP, GFRP, metal-matrix composites, aluminium and other abrasive non-ferrous and non-metallic materials.
Our PCD end mills use solid tungsten-carbide bodies with brazed PCD cutting edges to provide rigidity, wear resistance and consistent cutting performance.
Available designs include:

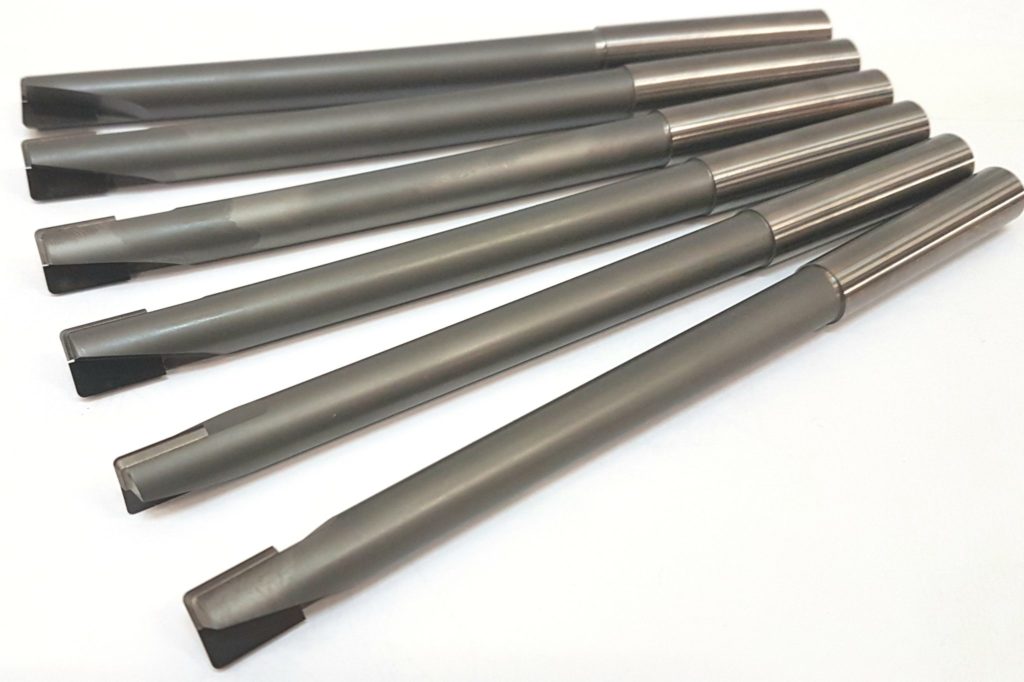

PCD Flat End Mills — for slotting, pocketing, contouring and general milling operations.
PCD Torus End Mills — with a corner radius for improved edge strength and high-speed pocketing, profiling and contouring.

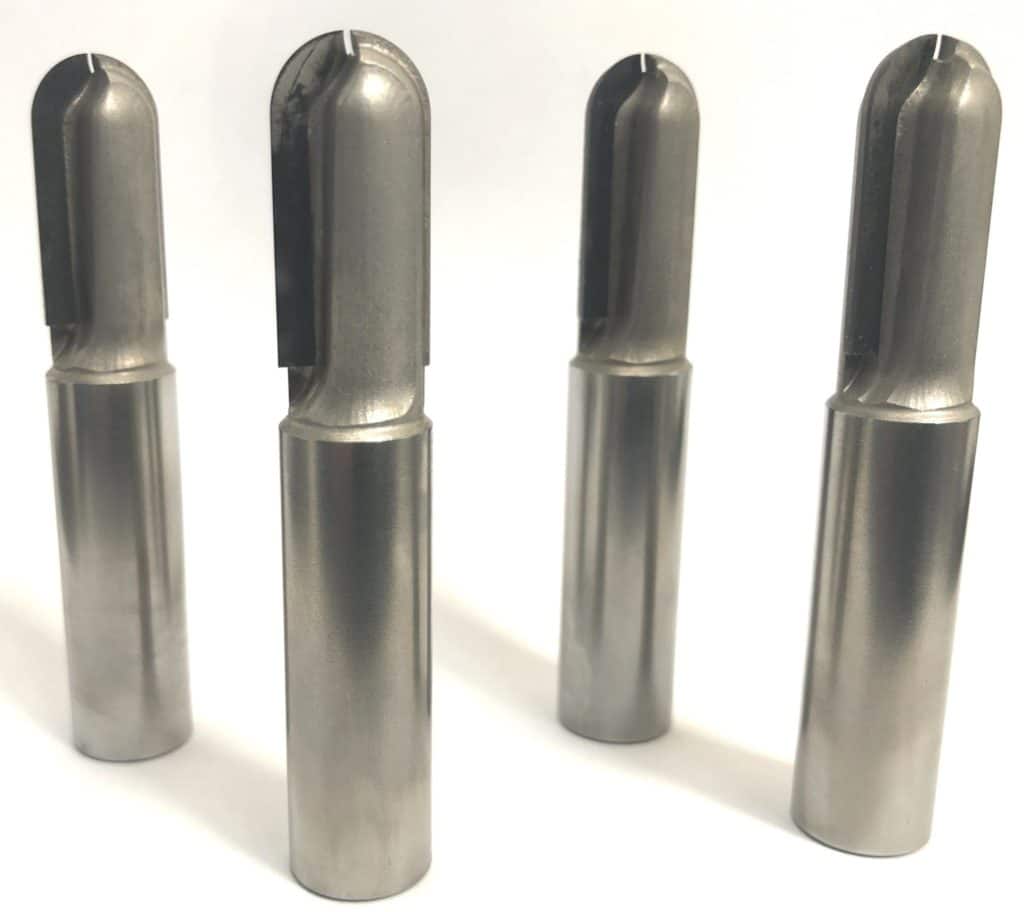

PCD Ball-Nose End Mills — for 3D profiling, curved surfaces and complex component geometries.
Standard metric and imperial sizes are available, together with bespoke diameters, cutting lengths, reaches, flute configurations and corner radii.
Looking for drills, countersinks and other specialist composite cutters? View our Composite Tooling capabilities.
Materials and Applications
PCD end mills are suitable for machining CFRP, GFRP, aluminium, metal-matrix composites, graphite and other abrasive non-ferrous and non-metallic materials.
The most suitable geometry will depend on the material, machining operation, cutting conditions and required component finish.
Standard metric and imperial sizes are available. Prima Tooling can also manufacture bespoke diameters, cutting lengths, reaches, flute configurations and corner radii for specialist applications.
Benefits of PCD End Mills
• Long tool life when machining abrasive materials
• Consistent cutting performance
• Reduced tool-change downtime
• Improved dimensional consistency
• High-quality component finishes
• Sharpening and retipping options where technically suitable
PCD end mills can be inspected, sharpened or retipped where the tool condition and remaining cutting material allow.
Selected standard PCD end mills are available to purchase from our online shop, with additional sizes and bespoke options available on request.
For further information about polycrystalline diamond tooling, read our What Is PCD? guide.
Discuss Your PCD Composite Milling Requirement
Contact Prima Tooling to discuss standard or bespoke PCD composite milling cutters, tool dimensions, cutting requirements, quantities and servicing options.
