Bespoke Cutting Tool Design and Manufacture

Bespoke tooling is often required when a component has a non-standard profile, restricted machining access, demanding surface-finish requirements or production volumes that justify a purpose-designed cutter. We consider the component material, machine, spindle, feed method, cutting direction and required tool life before recommending a tooling solution.

Profile cutters, combination tools and form tools manufactured to produce the required component geometry accurately and consistently.

Cutting geometry and tool material selected for timber, MDF, laminates, composites, plastics, aluminium and other engineering materials.

Purpose-designed tooling can reduce machining stages, improve edge quality and provide longer service life than an adapted standard cutter.

We can assess an existing cutter, drawing or component and manufacture replacement tooling, including repeat orders to previously approved designs.

Every bespoke tooling project starts with understanding the component, material, machine and required result. We review the information supplied, agree the proposed design and manufacture the tool to suit the application.

Send us a component drawing, sample tool, finished part or description of the machining requirement. We will review the material, machine, spindle, cutting direction and production needs.

We develop a suitable tool design, cutting geometry and material specification. Any important dimensions, tolerances and application details are confirmed before manufacture.

The tool is manufactured using the agreed specification in PCD, TCT, solid carbide, HSS or another suitable tooling material.

Finished tooling is inspected against the approved design. Manufacturing records can then support servicing, replacement tools and repeat orders.

The more application information available at the quotation stage, the easier it is to recommend the correct tool design and provide an accurate price. A fully detailed drawing is helpful, but we can also work from an existing cutter, finished component or machining requirement.

Supply a dimensioned drawing, CAD file, sample cutter, finished component or clear sketch showing the required profile and critical dimensions.

Tell us the material being machined, including its grade, coating, laminate or composite construction where relevant.

Provide the machine type, spindle speed range, toolholder or bore details, rotation direction and any restrictions on tool diameter or length.

Include the expected production quantity, required finish, tolerances, feed method and any existing tool-life or machining problems.

The most suitable cutting material depends on the component material, required finish, production volume, machine conditions and expected tool life. We manufacture bespoke tooling in a range of materials and will recommend an appropriate specification for the application.

Polycrystalline diamond tooling for abrasive materials and high-production applications where long tool life, dimensional consistency and edge quality are important.

TCT and solid carbide tooling for timber, panels, plastics, aluminium, composites and general machining applications.

HSS and other tooling materials can be considered where the application, cutting conditions or required geometry make them the most practical option.

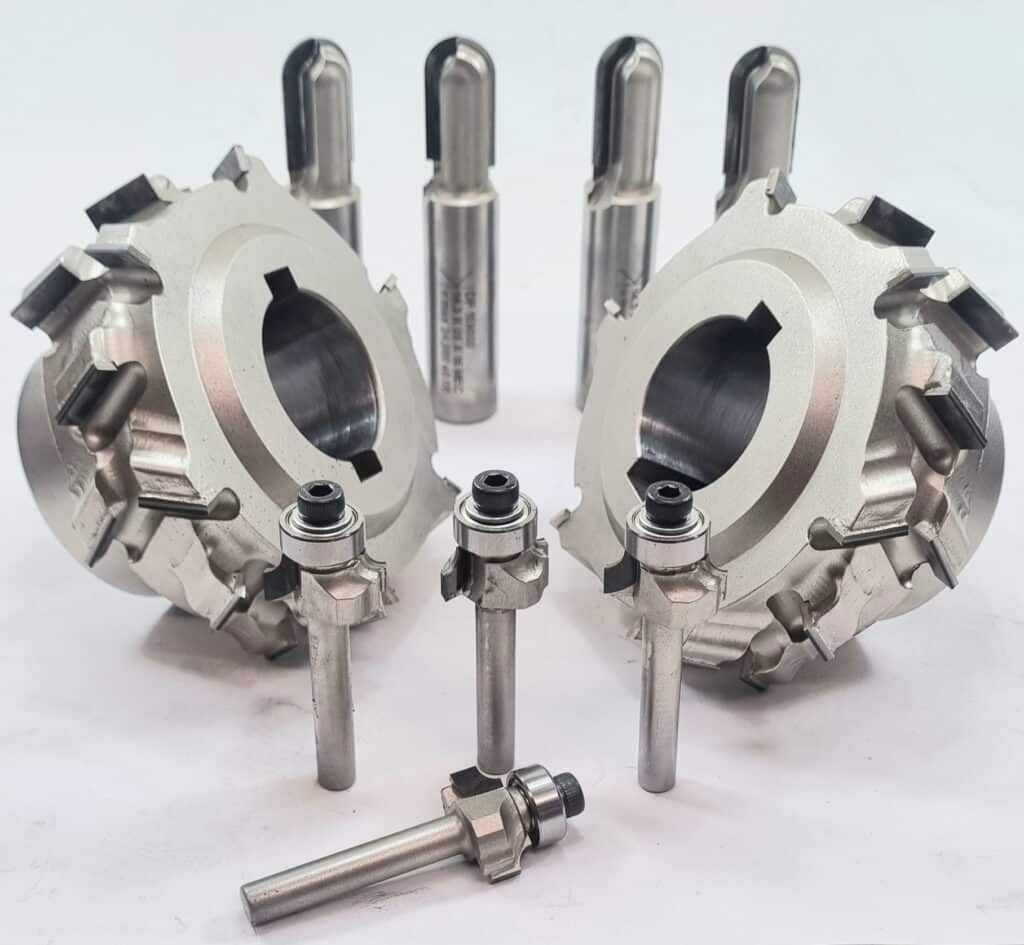

Capabilities include special router cutters, profile tools, end mills, boring tools, cutter blocks, groovers and combination tooling designed around the component and machine.

Bespoke tooling must be manufactured consistently and remain practical to service or replace. We retain the relevant design and manufacturing information so that approved tooling can be supported throughout its working life.

Finished tooling is inspected against the agreed dimensions and specification using suitable measuring and inspection equipment before despatch.

Lead time depends on the complexity of the design, tooling material, quantity and availability of any specialist components. An estimated delivery time is provided with the quotation and confirmed when the order is placed.

Where suitable, tooling can be sharpened, retipped or repaired. Retained manufacturing records also help us reproduce replacement tools and repeat previously approved designs.

We design and manufacture special tooling for a wide range of production and machining requirements. The examples below show some of the applications where a purpose-designed cutter may be suitable.

Tools designed to complete more than one machining operation in a single pass, helping reduce setup time and improve consistency.

Replacement tools manufactured from existing drawings or samples, together with modified designs developed to improve performance or suit a changed application.
