PCD End Mill – Flat Head
£0.00
Due to the increasing costs of Tungsten Carbide our PCD End Mill are currently not available on our shop. Please contact sales@primatooling.co.uk for current prices and availability.
£0.00
Due to the increasing costs of Tungsten Carbide our PCD End Mill are currently not available on our shop. Please contact sales@primatooling.co.uk for current prices and availability.
Due to the increasing costs of Tungsten Carbide our PCD End Mill are currently not available on our shop. Please contact sales@primatooling.co.uk for current prices and availability.

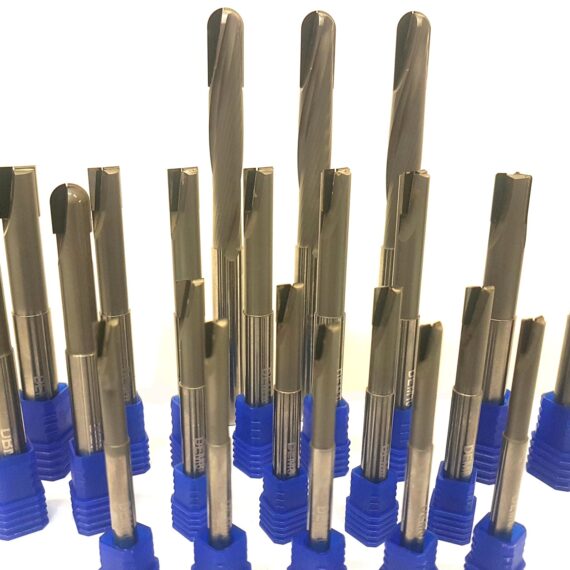

PCD End Mill – Flathead with a PCD Diamond Tip on a solid Tungsten Carbide body for high speed milling of pockets, slots, contouring etc., of aluminium, all non ferrous alloys, pre sintered materials and plastic composite materials; such as aluminum, copper, brass, bronze, plastics, graphite, carbon, carbon fiber materials, green carbide, gold, silver, magnesium, zinc, and green ceramics.
| D | L1 | L2 | Flutes | Shank Dia | Reach | RRP (inc GST) |
Image | Info |
|---|---|---|---|---|---|---|---|---|
| 3mm | 75mm | 4mm | 1 | 6mm | 15mm | £0 |
|
|
| 4mm | 75mm | 5mm | 1 | 6mm | 15mm | £0 |
|
|
| 5mm | 75mm | 6mm | 2 | 6mm | 20mm | £0 |
|
|
| 6mm | 75mm | 8mm | 2 | 6mm | 30mm | £0 |
|
|
| 8mm | 75mm | 10mm | 2 | 8mm | 30mm | £0 |
|
|
| 10mm | 100mm | 12mm | 2 | 10mm | 45mm | £0 |
|
|
| 12mm | 100mm | 14mm | 2 | 12mm | 45mm | £0 |
|
|
| 16mm | 140mm | 18mm | 2 | 16mm | 70mm | £0 |
|
|
| 18mm | 140mm | 18mm | 2 | 16mm | 70mm | £0 |
|
|
| 20mm | 160mm | 22mm | 2 | 20mm | 80mm | £0 |
|
|
| 1/4" | 4" | 5/16" | 2 | 1/4" | 1 3/16" | £0 |
|
| ISO | VDI | Description | Condition | Hardness | Strength | Optimal |
|---|
