The metalworking industry is experiencing a paradigm shift driven by increasing demands for customisation, precision, and efficiency in metal fabrication, shaping, and finishing. As a response to these evolving needs, manufacturers have turned to CNC machining, a versatile and powerful solution for unlocking new levels of productivity, accuracy, and cost-effectiveness in metalworking operations. With the right CNC cutting tools in place, metalworkers can master complex geometries and tight tolerances, creating superior-quality metal parts for diverse industries like aerospace, automotive, energy, and medical.

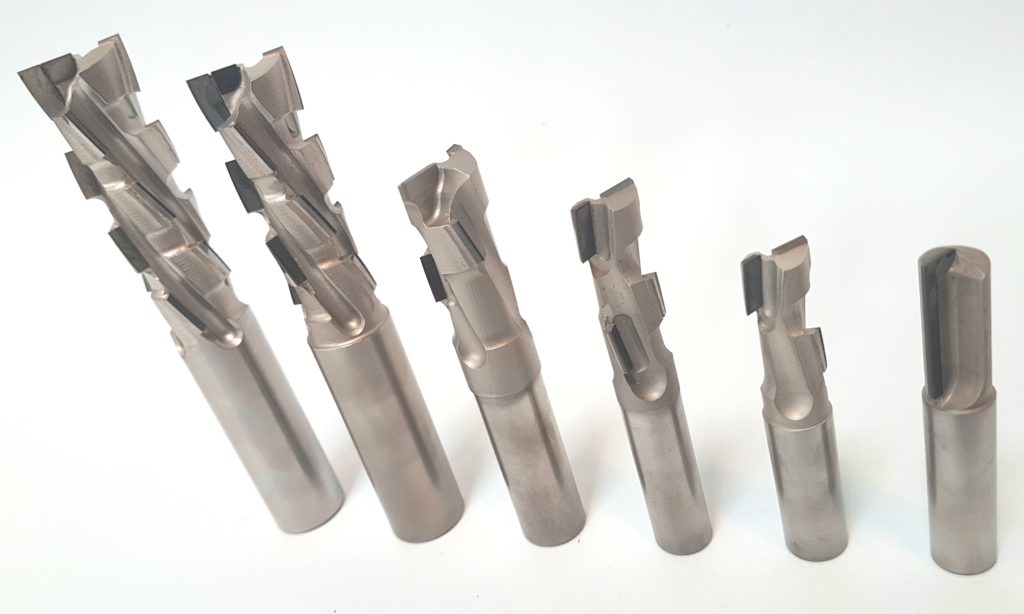

At Prima Tooling, we understand the unique challenges and intricacies of metal CNC machining and offer an extensive range of PCD, TCT, Solid Carbide, and HSS cutting tools specifically designed for this core industrial application. Our cutting-edge tools are precision-engineered to help metalworkers across various sectors achieve their goals with improved productivity, accuracy, and profitability. By relying on Prima Tooling’s expertise and tools, you can tap into the full potential of CNC machining for metalworking and stay ahead of the competition in a rapidly evolving manufacturing landscape.
In this in-depth blog post, we will delve into the critical aspects of CNC cutting tools for metal machining, exploring the selection, application, and best practices necessary for optimising your metalworking operations. We will discuss the importance of identifying the right cutting tool material based on the metal being machined and the specific requirements of your project. Moreover, we will shed light on application-specific strategies to maximise tool life, enhance surface finish, and achieve the desired outcomes consistently and efficiently.
By the end of this comprehensive guide, you will have gained a profound understanding of the world of CNC cutting tools for metal machining, empowering you to make informed decisions on tool selection, optimisation, and implementation that will drive productivity, accuracy, and profitability in your metalworking operations.
Understanding Aluminium Alloys
Aluminium is available in various alloyed forms, each with unique attributes that impact their machinability and suitability for specific applications. While numerous aluminium alloys exist, they generally fit into two categories: wrought and cast alloys. Wrought aluminium alloys are low-density, highly ductile materials that can be readily welded, extruded, and forged. Cast aluminium alloys, on the other hand, are formulated for exceptional casting properties and offer better strength and hardness than wrought alloys.
Selecting the right cutting tools and machining strategies for aluminium machining requires an understanding of the specific alloy’s characteristics. It is crucial to consider factors such as hardness, strength, and thermal conductivity to determine the most appropriate tools and techniques to use in the machining process.
Choosing the Right Cutting Tools for Aluminium Machining
Cutting tool selection plays a significant role in ensuring efficient, precise, and cost-effective aluminium machining. The following factors are crucial when selecting a cutting tool for aluminium processing:
1. Tool Material
For aluminium machining, solid carbide tools are generally preferred due to their high rigidity, wear resistance, and ability to withstand high machining speeds. High-speed steel (HSS) tools can also be used for certain aluminium applications, but they typically do not provide the same level of performance, precision, or tool life as solid carbide counterparts.
2. Tool Geometry
The geometry of the cutting tool can significantly impact the efficiency and quality of the aluminium machining process. For aluminium applications, tools with large helix angles (typically around 45 degrees) and positive rake angles are recommended to facilitate easy chip evacuation, reduce the risk of chip re-cutting, and minimise built-up edge (BUE). Additionally, tools with polished flutes can further enhance chip evacuation and reduce aluminium adhesion, resulting in a cleaner and smoother machining process.
Implementing Effective Machining Techniques
Adopting effective aluminium machining techniques can greatly optimise the performance, quality, and efficiency of the machining process. Here are some best practices to follow when milling and drilling aluminium:
1. Optimising Spindle Speed and Feed Rate
High spindle speeds and aggressive feed rates are typically recommended for aluminium machining to promote efficient chip evacuation and prevent material adhesion. However, these parameters must be balanced with cutting tool specifications, machine capabilities, and part complexity to ensure optimal results and avoid tool failure.
2. Utilising Climb Milling
Climb milling, in which the cutting tool moves in the same direction as the workpiece feed, is typically recommended for aluminium machining. This technique minimises the risk of built-up edge, promotes efficient chip evacuation, and allows for better control of part dimensions.
3. Minimising Tool Deflection
Tool deflection can lead to dimensional inaccuracies and reduced tool life. To minimise deflection when machining aluminium, consider utilising shorter cutting tools, employing tool-holding systems with minimal runout, and choosing tools with the appropriate flute count for the specific machining application.
Tool Life Management and Optimisation Strategies
Effectively managing and optimising cutting tool life can help enhance aluminium machining performance, reduce costs, and maintain consistent product quality. Consider the following strategies to ensure optimal tool life:
1. Regular Tool Inspection and Maintenance
Inspect and maintain your cutting tools at regular intervals to identify any signs of wear, damage, or built-up edge. Early discovery of tool degradation can help prevent catastrophic tool failure and resulting component damage.
2. Tool Path Optimisation and Adaptive Machining
Evaluate and optimise your tool paths, utilising adaptive machining strategies to reduce tool engagement variations and evenly distribute tool wear. This may help extend tool life, minimise thermal fluctuations, and maintain a consistent surface finish on your aluminium parts.
Conclusion
Mastering aluminium machining with CNC cutting tools requires a thorough understanding of aluminium alloys, cutting tool selection criteria, effective machining techniques, and optimisation strategies. By leveraging the expertise and cutting-edge tools provided by Prima Tooling, you can elevate your aluminium machining operations to ensure efficient, precise, and cost-effective milling and drilling results. As a trusted partner in the industry, Prima Tooling can help guide you through the complexities of aluminium machining, empowering you to successfully tackle the most demanding aluminium processing projects and continuously produce high-quality, competitive products.
