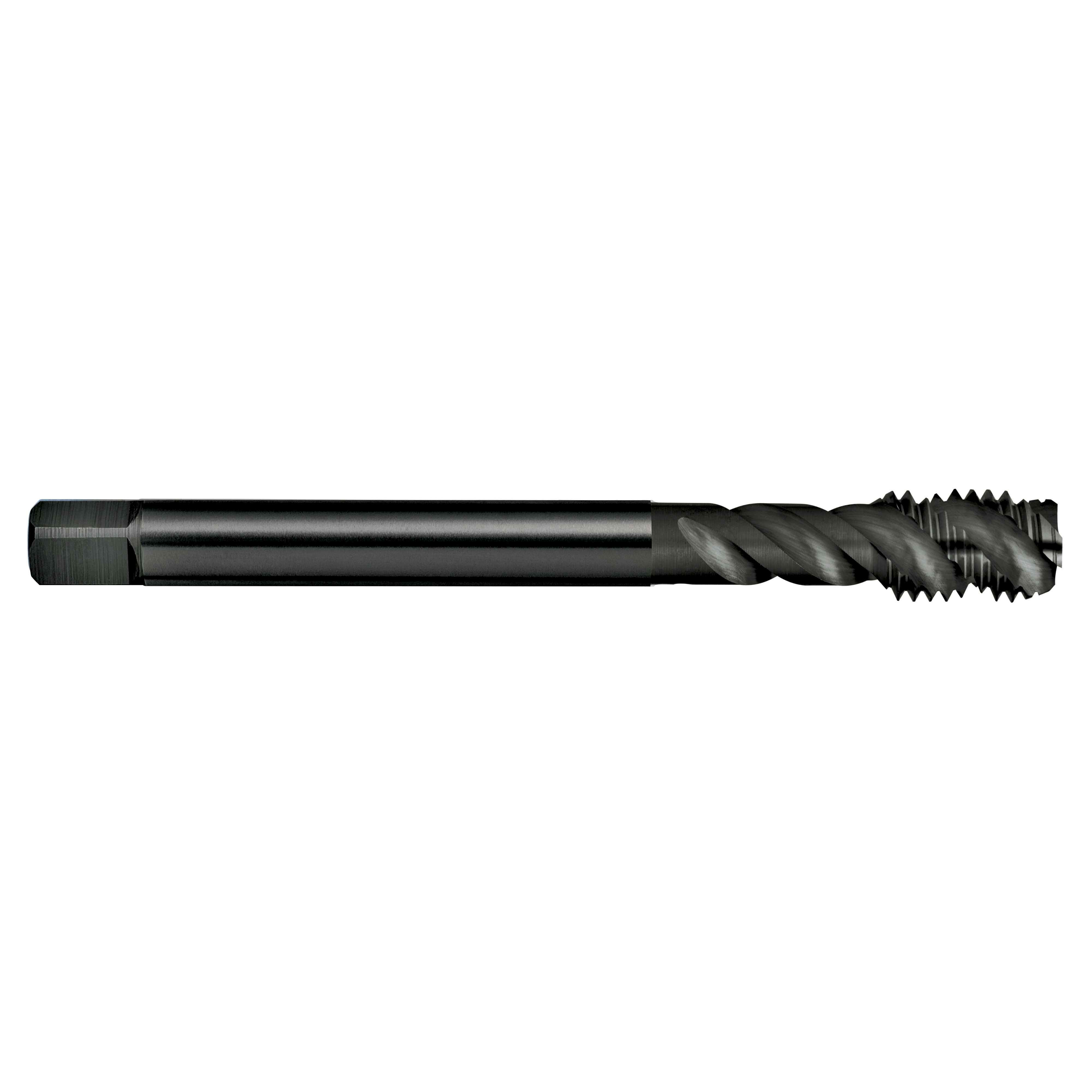

DIN TAP T234 Spiral Flute, Metric, R45, CrN

SKU: 01t28000001sQZGAA2 Categories: ,

Description

DIN TAP T234 Spiral Flute, Metric, R45, CrN. Suitable for use in wrought aluminium and low silicon aluminium. Blind holes. Depths up to 3 x d1. CrN for longer tool life

Related products

Range
Features
Application
Specification
pitemd1Pitchlimitlengthl1mmlengthl2mmdiameterd2mmsqlengthl4mmz RRP
(inc GST)		 Image Info
T2341200 M12 1.75 ISO 2 / 6H 110 17.5 9 7 10 2 £40
  • T2341200
  • M12
  • ISO 2 / 6H
  • 110
  • 17.5
  • 9
  • 7
  • 10
  • 2
  • Pack Qty: 1
  • Barcode: 9311963393131
  • Order Multiple: 1
T2341400 M14 2 ISO 2 / 6H 110 20 11 9 12 2 £53
  • T2341400
  • M14
  • ISO 2 / 6H
  • 110
  • 20
  • 11
  • 9
  • 12
  • 2
  • Pack Qty: 1
  • Barcode: 9311963509051
  • Order Multiple: 1
T2341600 M16 2 ISO 2 / 6H 110 20 12 9 12 2 £59
  • T2341600
  • M16
  • ISO 2 / 6H
  • 110
  • 20
  • 12
  • 9
  • 12
  • 2
  • Pack Qty: 1
  • Barcode: 9311963393148
  • Order Multiple: 1
T2341800 M18 2.5 ISO 2 / 6H 125 25 14 11 14 2 £74
  • T2341800
  • M18
  • ISO 2 / 6H
  • 125
  • 25
  • 14
  • 11
  • 14
  • 2
  • Pack Qty: 1
  • Barcode: 9311963509068
  • Order Multiple: 1
T2342000 M20 2.5 ISO 2 / 6H 140 25 16 12 15 2 £98
  • T2342000
  • M20
  • ISO 2 / 6H
  • 140
  • 25
  • 16
  • 12
  • 15
  • 2
  • Pack Qty: 1
  • Barcode: 9311963393155
  • Order Multiple: 1
  • Suitable for use in wrought aluminium and low silicon aluminium
  • Blind holes
  • Depths up to 3 x d1
  • CrN for longer tool life
ISO VDI Description Condition Hardness Strength Optimal
N 21 Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 210
N 22 Aluminum & Magnesium, wrought alloy - Heat Treatable Age Hardened 100 360
N 23 Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable 75 270
N 24 Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable Age Hardened 90 320
N 26 Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% 110 390
N 28 Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) 100 360

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
Al
Material
HSSE
Finish
CrN
Max Cut Depth
3xD
Shank Form
A
Helix Angle
R45
Standard
DIN376
Thread Form
Metric
Thread Tolerance Class
6H
Lead
Form C
