ISO TAP T469 Taper, BA, straight flute, N, HSS, Brt
ISO TAP T469 Taper, BA, straight flute, N, HSS, Brt

ISO TAP T469 Taper, BA, straight flute, N, HSS, Brt

£7.54 – £33.01

ISO TAP T469 Taper, BA, straight flute, N, HSS, Brt

SKU: 01t28000001sR5JAAU Categories: ,

Description

ISO TAP T469 Taper, BA, straight flute, N, HSS, Brt. For general purpose use, through & blind holes. Suitable for both hand and machine operations. Depths up to approx. 1 x d1. Suitable for materials up to 1000N/mm2

Related products

Range
Features
Application
Specification

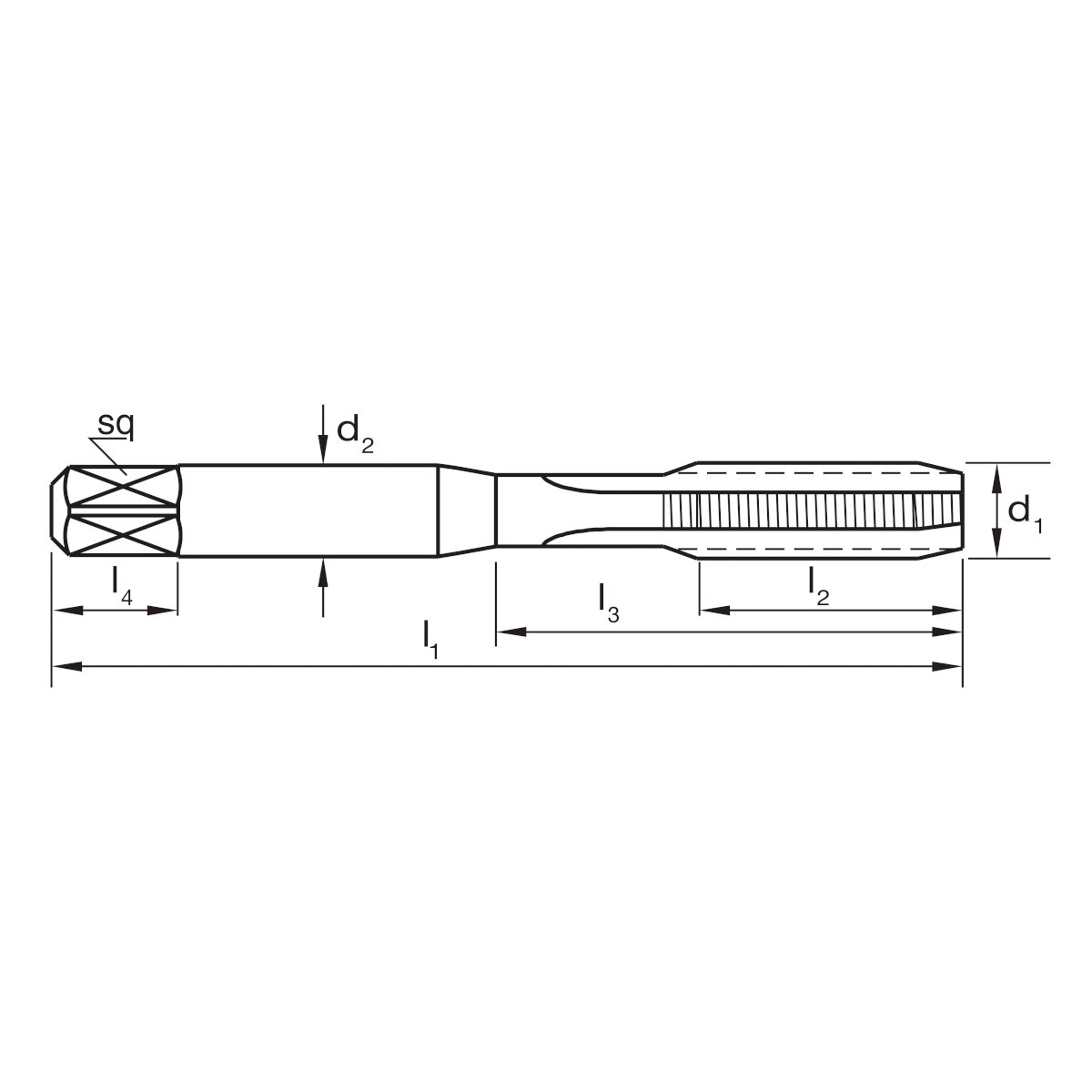

pitemd1limitlengthl1mmlengthl2mmlengthl3mmdiameterd2mmsqlengthl4mmzpitch RRP
(inc GST)		 Image Info
T4690170 #10 Z3 41 8 NA 2.5 2 4 3 0.35 £33
  • T4690170
  • #10
  • Z3
  • 41
  • 8
  • NA
  • 2.5
  • 2
  • 4
  • 3
  • 0.35
  • Pack Qty: 1
  • Barcode: 9311963031040
  • Order Multiple: 1
T4690190 #9 Z3 41 8 NA 2.5 2 4 3 0.39 £24
  • T4690190
  • #9
  • Z3
  • 41
  • 8
  • NA
  • 2.5
  • 2
  • 4
  • 3
  • 0.39
  • Pack Qty: 1
  • Barcode: 9311963043517
  • Order Multiple: 1
T4690220 #8 Z3 45 10 NA 2.8 2.24 5 3 0.43 £15
  • T4690220
  • #8
  • Z3
  • 45
  • 10
  • NA
  • 2.8
  • 2.24
  • 5
  • 3
  • 0.43
  • Pack Qty: 1
  • Barcode: 9311963019499
  • Order Multiple: 1
T4690250 #7 Z3 45 10 NA 2.8 2.24 5 3 0.48 £23
  • T4690250
  • #7
  • Z3
  • 45
  • 10
  • NA
  • 2.8
  • 2.24
  • 5
  • 3
  • 0.48
  • Pack Qty: 1
  • Barcode: 9311963031033
  • Order Multiple: 1
T4690280 #6 Z3 48 15 NA 3.15 2.5 5 3 0.53 £8
  • T4690280
  • #6
  • Z3
  • 48
  • 15
  • NA
  • 3.15
  • 2.5
  • 5
  • 3
  • 0.53
  • Pack Qty: 1
  • Barcode: 9311963018140
  • Order Multiple: 1
T4690320 #5 Z3 48 15 NA 3.15 2.5 5 3 0.59 £12
  • T4690320
  • #5
  • Z3
  • 48
  • 15
  • NA
  • 3.15
  • 2.5
  • 5
  • 3
  • 0.59
  • Pack Qty: 1
  • Barcode: 9311963025957
  • Order Multiple: 1
T4690360 #4 Z3 50 17 NA 3.55 2.8 5 3 0.66 £8
  • T4690360
  • #4
  • Z3
  • 50
  • 17
  • NA
  • 3.55
  • 2.8
  • 5
  • 3
  • 0.66
  • Pack Qty: 1
  • Barcode: 9311963018133
  • Order Multiple: 1
T4690410 #3 Z3 53 13 18 4.5 3.55 6 3 0.73 £16
  • T4690410
  • #3
  • Z3
  • 53
  • 13
  • 18
  • 4.5
  • 3.55
  • 6
  • 3
  • 0.73
  • Pack Qty: 1
  • Barcode: 9311963031026
  • Order Multiple: 1
T4690470 #2 Z3 58 16 22 5 4 7 3 0.81 £8
  • T4690470
  • #2
  • Z3
  • 58
  • 16
  • 22
  • 5
  • 4
  • 7
  • 3
  • 0.81
  • Pack Qty: 1
  • Barcode: 9311963022413
  • Order Multiple: 1
T4690530 #1 Z3 62 17 23 5.6 4.5 7 3 0.90 £16
  • T4690530
  • #1
  • Z3
  • 62
  • 17
  • 23
  • 5.6
  • 4.5
  • 7
  • 3
  • 0.90
  • Pack Qty: 1
  • Barcode: 9311963038209
  • Order Multiple: 1
T4690600 #0 Z3 66 19 26 6.3 5 8 3 1.00 £10
  • T4690600
  • #0
  • Z3
  • 66
  • 19
  • 26
  • 6.3
  • 5
  • 8
  • 3
  • 1.00
  • Pack Qty: 1
  • Barcode: 9311963028132
  • Order Multiple: 1
  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
ISO VDI Description Condition Hardness Strength Optimal
P 1 Steel - Non-alloy, cast & free cutting (~ 0.15 %C) Annealed 125 440
P 2 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Annealed 190 640
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 6 Steel - Low alloy & cast < 5% of alloying elements Annealed 180 610
P 7 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 275 930
K 15 Cast Iron, Grey (GG) - Ferritic / Pearlitic 180 610
K 17 Cast Iron, Nodular (GGG) - Ferritic 160 570
K 19 Cast Iron, Malleable - Ferritic 130 460
N 21 Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 210
N 22 Aluminum & Magnesium, wrought alloy - Heat Treatable Age Hardened 100 360
N 23 Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable 75 270
N 24 Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable Age Hardened 90 320
N 26 Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% 110 390
N 28 Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) 100 360

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
N
Material
HSS
Finish
Brt
Max Cut Depth
1xD
Shank Form
A
Standard
ISO529
Thread Form
BA
Nut Tolerance
Z3 Medium
Lead
Taper
