ISO TAP T449 Intermediate, UN, straight flute, N, HSS, Brt
ISO TAP T449 Intermediate, UN, straight flute, N, HSS, Brt

ISO TAP T449 Intermediate, UN, straight flute, N, HSS, Brt

£83.37 – £317.87

ISO TAP T449 Intermediate, UN, straight flute, N, HSS, Brt

SKU: 01t28000001sR1tAAE Categories: ,

Description

ISO TAP T449 Intermediate, UN, straight flute, N, HSS, Brt. For general purpose use, through & blind holes. Suitable for both hand and machine operations. Depths up to approx. 1 x d1. Suitable for materials up to 1000N/mm2

Related products

Range
Features
Application
Specification

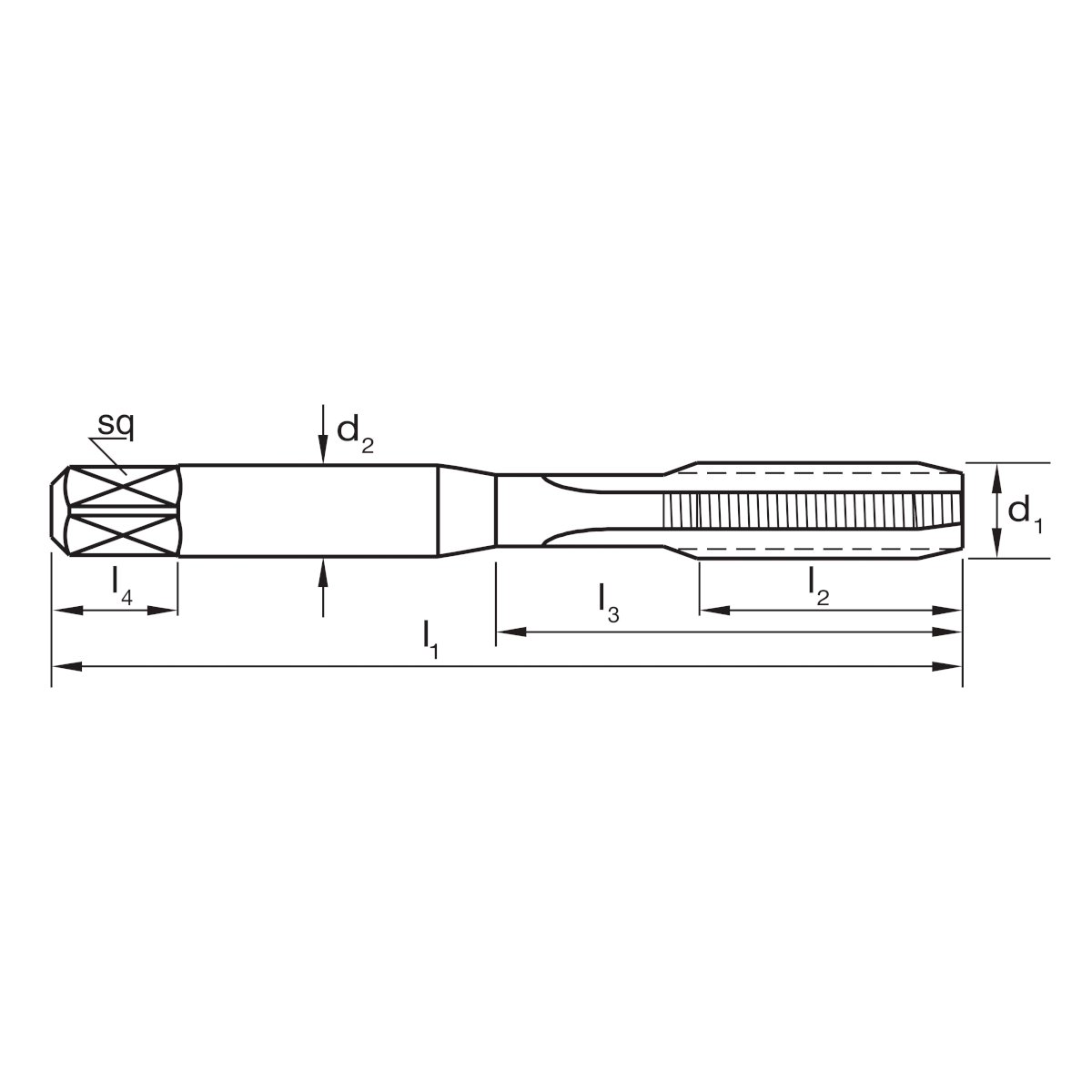

pitemd1tpilimitlengthl1mmlengthl2mmdiameterd2mmsqlengthl4mmz RRP
(inc GST)		 Image Info
T4492858 1 1/8 8 GH8 / 2B 138 48 20 16 20 4 £83
  • T4492858
  • 1 1/8
  • 8
  • GH8 / 2B
  • 138
  • 48
  • 20
  • 16
  • 20
  • 4
  • Pack Qty: 1
  • Barcode: 9311963433783
  • Order Multiple: 1
T4493175 1 1/4 8 GH8 / 2B 151 51 22.4 18 22 4 £117
  • T4493175
  • 1 1/4
  • 8
  • GH8 / 2B
  • 151
  • 51
  • 22.4
  • 18
  • 22
  • 4
  • Pack Qty: 1
  • Barcode: 9311963433806
  • Order Multiple: 1
T4493493 1 3/8 8 GH8 / 2B 162 57 25 20 24 4 £137
  • T4493493
  • 1 3/8
  • 8
  • GH8 / 2B
  • 162
  • 57
  • 25
  • 20
  • 24
  • 4
  • Pack Qty: 1
  • Barcode: 9311963509884
  • Order Multiple: 1
T4493810 1 1/2 8 GH8 / 2B 170 60 28 22.4 26 4 £162
  • T4493810
  • 1 1/2
  • 8
  • GH8 / 2B
  • 170
  • 60
  • 28
  • 22.4
  • 26
  • 4
  • Pack Qty: 1
  • Barcode: 9311963433820
  • Order Multiple: 1
T4494128 1 5/8 8 GH8 / 2B 170 60 28 22.4 26 4 £219
  • T4494128
  • 1 5/8
  • 8
  • GH8 / 2B
  • 170
  • 60
  • 28
  • 22.4
  • 26
  • 4
  • Pack Qty: 1
  • Barcode: 9311963509891
  • Order Multiple: 1
T4494445 1 3/4 8 GH8 / 2B 187 67 31.5 25 28 4 £227
  • T4494445
  • 1 3/4
  • 8
  • GH8 / 2B
  • 187
  • 67
  • 31.5
  • 25
  • 28
  • 4
  • Pack Qty: 1
  • Barcode: 9311963433844
  • Order Multiple: 1
T4494763 1 7/8 8 GH8 / 2B 187 67 31.5 25 28 4 £292
  • T4494763
  • 1 7/8
  • 8
  • GH8 / 2B
  • 187
  • 67
  • 31.5
  • 25
  • 28
  • 4
  • Pack Qty: 1
  • Barcode: 9311963509907
  • Order Multiple: 1
T4495080 2 8 GH8 / 2B 200 70 35.5 28 31 4 £318
  • T4495080
  • 2
  • 8
  • GH8 / 2B
  • 200
  • 70
  • 35.5
  • 28
  • 31
  • 4
  • Pack Qty: 1
  • Barcode: 9311963433868
  • Order Multiple: 1
  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
ISO VDI Description Condition Hardness Strength Optimal
P 1 Steel - Non-alloy, cast & free cutting (~ 0.15 %C) Annealed 125 440
P 2 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Annealed 190 640
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 6 Steel - Low alloy & cast < 5% of alloying elements Annealed 180 610
P 7 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 275 930
K 15 Cast Iron, Grey (GG) - Ferritic / Pearlitic 180 610
K 17 Cast Iron, Nodular (GGG) - Ferritic 160 570
K 19 Cast Iron, Malleable - Ferritic 130 460
N 21 Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 210
N 22 Aluminum & Magnesium, wrought alloy - Heat Treatable Age Hardened 100 360
N 23 Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable 75 270
N 24 Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable Age Hardened 90 320
N 26 Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% 110 390
N 28 Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) 100 360

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
N
Material
HSS
Finish
Brt
Max Cut Depth
1xD
Shank Form
A
Standard
ISO529
Thread Form
8UN
Nut Tolerance
GH8 / 2B
Lead
Intermediate
