ISO TAP T424 Intermediate, UNC, Gun, N, HSSE TiN
ISO TAP T424 Intermediate, UNC, Gun, N, HSSE TiN

ISO TAP T424 Intermediate, UNC, Gun, N, HSSE TiN

£26.23 – £106.60

ISO TAP T424 Intermediate, UNC, Gun, N, HSSE TiN

SKU: 01t28000001sQy5AAE Categories: ,

Description

ISO TAP T424 Intermediate, UNC, Gun, N, HSSE TiN. For general purpose use, through holes. Depths up to approx. 3 x d1. Suitable for materials up to 1000N/mm2

Related products

Range
Features
Application
Specification

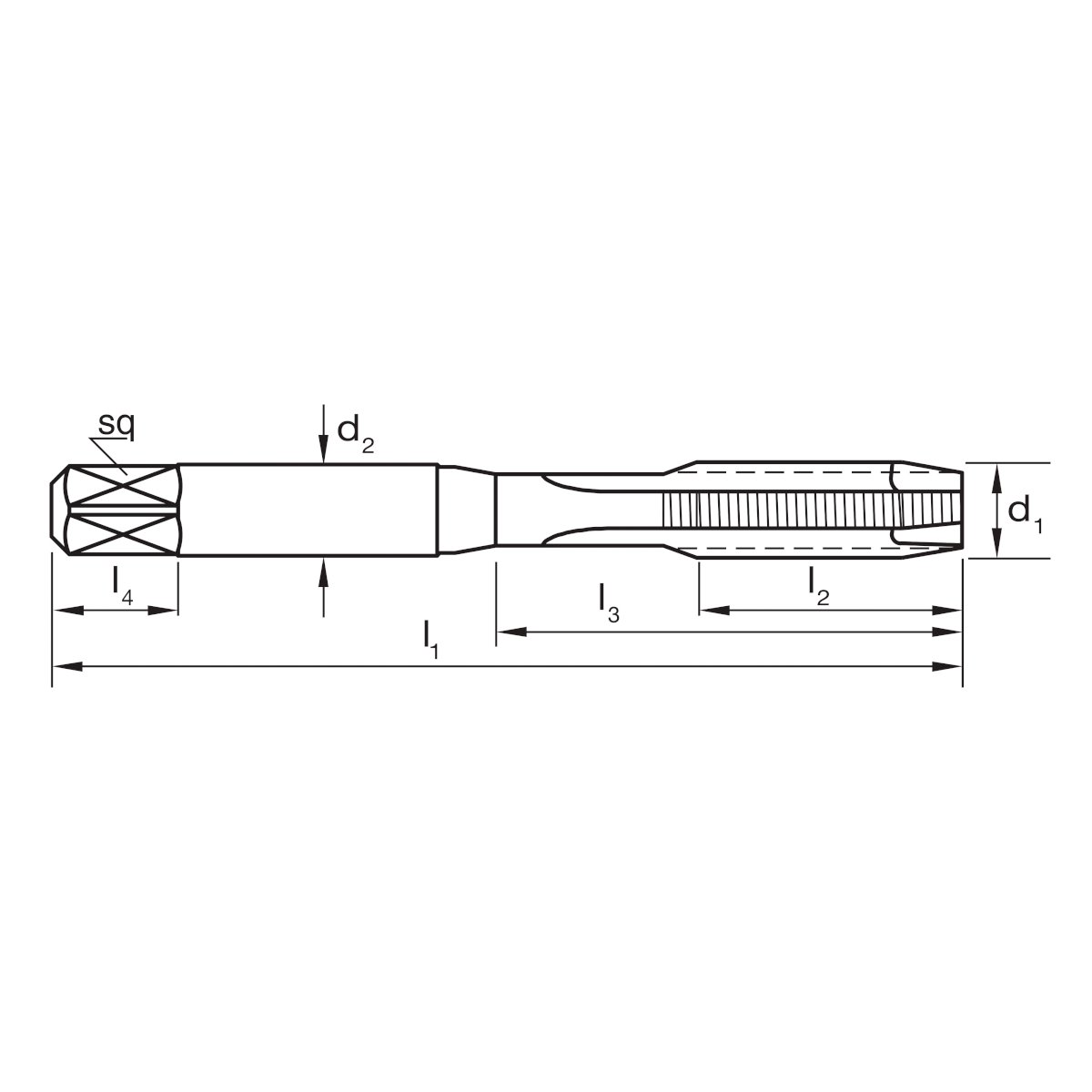

pitemd1tpilimitlengthl1mmlengthl2mmdiameterd2mmsqlengthl4mmz RRP
(inc GST)		 Image Info
T4240351 #6 32 2B 50 17 3.55 2.8 5 3 £27
  • T4240351
  • #6
  • 32
  • 2B
  • 50
  • 17
  • 3.55
  • 2.8
  • 5
  • 3
  • Pack Qty: 1
  • Barcode: 9311963066622
  • Order Multiple: 1
T4240417 #8 32 2B 53 13 4.5 3.55 6 3 £26
  • T4240417
  • #8
  • 32
  • 2B
  • 53
  • 13
  • 4.5
  • 3.55
  • 6
  • 3
  • Pack Qty: 1
  • Barcode: 9311963066639
  • Order Multiple: 1
T4240483 #10 24 2B 58 16 5 4 7 3 £28
  • T4240483
  • #10
  • 24
  • 2B
  • 58
  • 16
  • 5
  • 4
  • 7
  • 3
  • Pack Qty: 1
  • Barcode: 9311963066646
  • Order Multiple: 1
T4240635 1/4 20 2B 66 19 6.3 5 8 3 £26
  • T4240635
  • 1/4
  • 20
  • 2B
  • 66
  • 19
  • 6.3
  • 5
  • 8
  • 3
  • Pack Qty: 1
  • Barcode: 9311963066653
  • Order Multiple: 1
T4240794 5/16 18 2B 72 22 8 6.3 9 3 £30
  • T4240794
  • 5/16
  • 18
  • 2B
  • 72
  • 22
  • 8
  • 6.3
  • 9
  • 3
  • Pack Qty: 1
  • Barcode: 9311963066660
  • Order Multiple: 1
T4240953 3/8 16 2B 80 24 10 8 11 3 £37
  • T4240953
  • 3/8
  • 16
  • 2B
  • 80
  • 24
  • 10
  • 8
  • 11
  • 3
  • Pack Qty: 1
  • Barcode: 9311963066677
  • Order Multiple: 1
T4241270 1/2 13 2B 89 29 9 7.1 10 3 £48
  • T4241270
  • 1/2
  • 13
  • 2B
  • 89
  • 29
  • 9
  • 7.1
  • 10
  • 3
  • Pack Qty: 1
  • Barcode: 9311963067315
  • Order Multiple: 1
T4241588 5/8 11 2B 102 32 12.5 10 13 3 £73
  • T4241588
  • 5/8
  • 11
  • 2B
  • 102
  • 32
  • 12.5
  • 10
  • 13
  • 3
  • Pack Qty: 1
  • Barcode: 9311963067407
  • Order Multiple: 1
T4241905 3/4 10 2B 112 37 14 11.2 14 4 £107
  • T4241905
  • 3/4
  • 10
  • 2B
  • 112
  • 37
  • 14
  • 11.2
  • 14
  • 4
  • Pack Qty: 1
  • Barcode: 9311963069647
  • Order Multiple: 1
  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1
ISO VDI Description Condition Hardness Strength Optimal
P 1 Steel - Non-alloy, cast & free cutting (~ 0.15 %C) Annealed 125 440
P 2 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Annealed 190 640
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 5 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Quenched & Tempered 300 1010
P 6 Steel - Low alloy & cast < 5% of alloying elements Annealed 180 610
P 7 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 275 930
P 8 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 300 1010
P 10 Steel - High alloy, cast & tool Annealed 200 680
P 12 Steel - Corrosion resistant & cast - Ferritic / Martensitic Annealed 200 680
P 13 Steel - Corrosion resistant & cast - Martensitic Quenched & Tempered 240 810
M 14.1 Stainless Steel - Austenitic Age Hardened 180 610
M 14.2 Stainless Steel - Duplex 250 840
K 17 Cast Iron, Nodular (GGG) - Ferritic 160 570
K 18 Cast Iron, Nodular (GGG) - Pearlitic 250 840
K 19 Cast Iron, Malleable - Ferritic 130 460
N 21 Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 210
N 22 Aluminum & Magnesium, wrought alloy - Heat Treatable Age Hardened 100 360
N 23 Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable 75 270
N 24 Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable Age Hardened 90 320
N 25 Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable 130 460
N 26 Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% 110 390
N 27 Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) 90 320
H 40 Cast Iron - Chilled Cast 400 1350

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
N
Material
HSSE V3
Finish
TiN
Max Cut Depth
3xD
Shank Form
A
Standard
ISO529
Thread Form
UNC
Nut Tolerance
2B
Lead
Form B / 4.5 x P
