ISO Tap T418 Bottoming, UNC, Straight Flute, N HSS TiN
ISO Tap T418 Bottoming, UNC, Straight Flute, N HSS TiN

ISO Tap T418 Bottoming, UNC, Straight Flute, N HSS TiN

£11.99 – £48.86

ISO Tap T418 Bottoming, UNC, Straight Flute, N HSS TiN

SKU: 01t28000001sQxGAAU Categories: ,

Description

ISO Tap T418 Bottoming, UNC, Straight Flute, N HSS TiN. For general purpose use, through & blind holes. Suitable for both hand and machine operations. Depths up to approx. 1 x d1.

Related products

Range
Features
Application
Specification

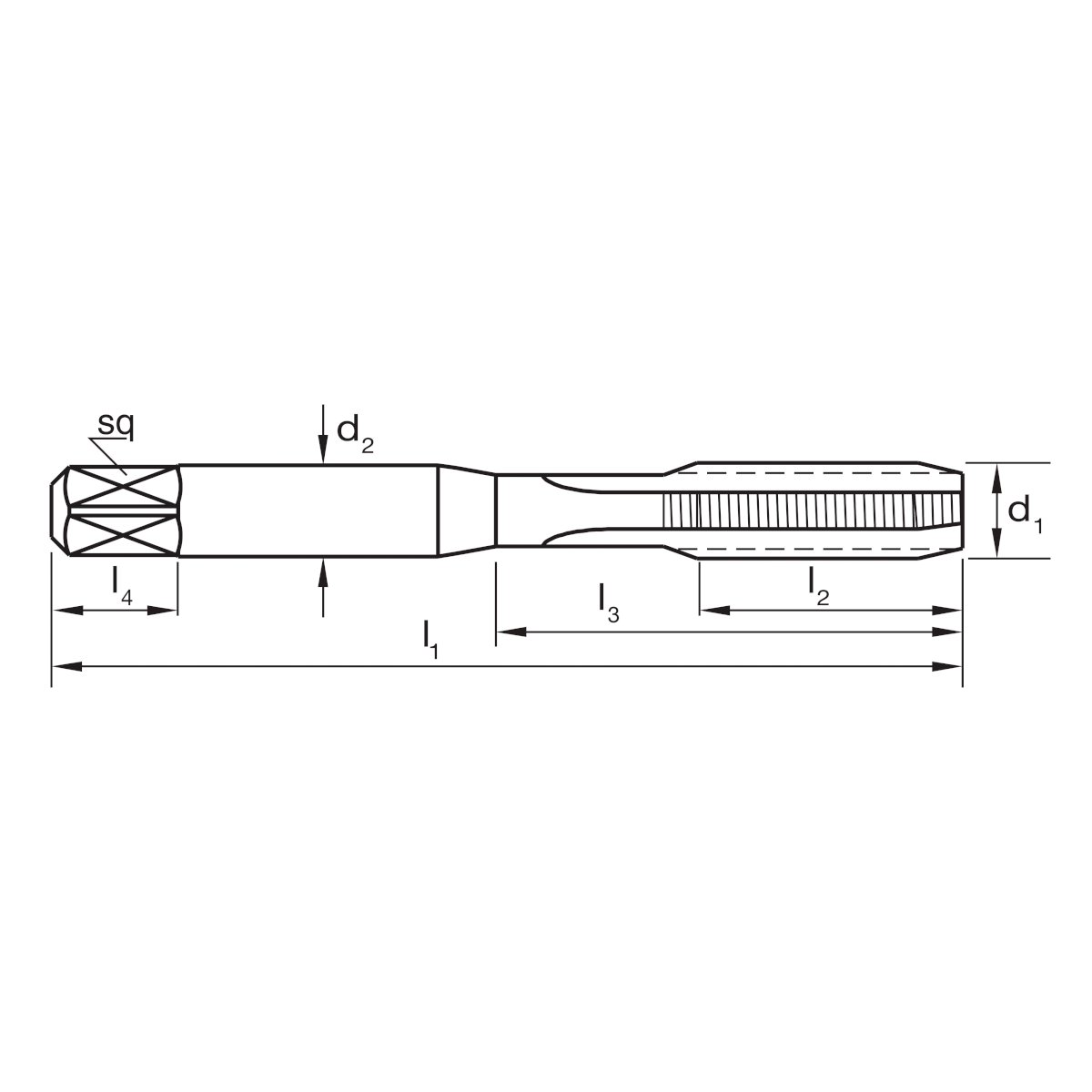

pitemd1tpilimitlengthl1mmlengthl2mmdiameterd2mmsqlengthl4mmz RRP
(inc GST)		 Image Info
T4180351 #6 32 2B 50 17 3.55 2.8 5 3 £12
  • T4180351
  • #6
  • 32
  • 2B
  • 50
  • 17
  • 3.55
  • 2.8
  • 5
  • 3
  • Pack Qty: 1
  • Barcode: 9311963066127
  • Order Multiple: 1
T4180417 #8 32 2B 53 13 4.5 3.55 6 3 £12
  • T4180417
  • #8
  • 32
  • 2B
  • 53
  • 13
  • 4.5
  • 3.55
  • 6
  • 3
  • Pack Qty: 1
  • Barcode: 9311963066141
  • Order Multiple: 1
T4180483 #10 24 2B 58 16 5 4 7 3 £13
  • T4180483
  • #10
  • 24
  • 2B
  • 58
  • 16
  • 5
  • 4
  • 7
  • 3
  • Pack Qty: 1
  • Barcode: 9311963064680
  • Order Multiple: 1
T4180635 1/4 20 2B 66 19 6.3 5 8 3 £12
  • T4180635
  • 1/4
  • 20
  • 2B
  • 66
  • 19
  • 6.3
  • 5
  • 8
  • 3
  • Pack Qty: 1
  • Barcode: 9311963066172
  • Order Multiple: 1
T4180794 5/16 18 2B 72 22 8 6.3 9 4 £14
  • T4180794
  • 5/16
  • 18
  • 2B
  • 72
  • 22
  • 8
  • 6.3
  • 9
  • 4
  • Pack Qty: 1
  • Barcode: 9311963066196
  • Order Multiple: 1
T4180953 3/8 16 2B 80 24 10 8 11 4 £17
  • T4180953
  • 3/8
  • 16
  • 2B
  • 80
  • 24
  • 10
  • 8
  • 11
  • 4
  • Pack Qty: 1
  • Barcode: 9311963064673
  • Order Multiple: 1
T4181111 7/16 14 2B 85 25 8 6.3 9 4 £25
  • T4181111
  • 7/16
  • 14
  • 2B
  • 85
  • 25
  • 8
  • 6.3
  • 9
  • 4
  • Pack Qty: 1
  • Barcode: 9311963064963
  • Order Multiple: 1
T4181270 1/2 13 2B 89 29 9 7.1 10 4 £22
  • T4181270
  • 1/2
  • 13
  • 2B
  • 89
  • 29
  • 9
  • 7.1
  • 10
  • 4
  • Pack Qty: 1
  • Barcode: 9311963064697
  • Order Multiple: 1
T4181588 5/8 11 2B 102 32 12.5 10 13 4 £34
  • T4181588
  • 5/8
  • 11
  • 2B
  • 102
  • 32
  • 12.5
  • 10
  • 13
  • 4
  • Pack Qty: 1
  • Barcode: 9311963069500
  • Order Multiple: 1
T4181905 3/4 10 2B 112 37 14 11.2 14 4 £49
  • T4181905
  • 3/4
  • 10
  • 2B
  • 112
  • 37
  • 14
  • 11.2
  • 14
  • 4
  • Pack Qty: 1
  • Barcode: 9311963068855
  • Order Multiple: 1
  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
ISO VDI Description Condition Hardness Strength Optimal
P 1 Steel - Non-alloy, cast & free cutting (~ 0.15 %C) Annealed 125 440
P 2 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Annealed 190 640
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 5 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Quenched & Tempered 300 1010
P 6 Steel - Low alloy & cast < 5% of alloying elements Annealed 180 610
P 7 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 275 930
P 8 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 300 1010
P 10 Steel - High alloy, cast & tool Annealed 200 680
P 12 Steel - Corrosion resistant & cast - Ferritic / Martensitic Annealed 200 680
M 14.1 Stainless Steel - Austenitic Age Hardened 180 610
K 15 Cast Iron, Grey (GG) - Ferritic / Pearlitic 180 610
K 17 Cast Iron, Nodular (GGG) - Ferritic 160 570
K 19 Cast Iron, Malleable - Ferritic 130 460
N 21 Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 210
N 22 Aluminum & Magnesium, wrought alloy - Heat Treatable Age Hardened 100 360
N 23 Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable 75 270
N 24 Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable Age Hardened 90 320
N 26 Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% 110 390
N 27 Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) 90 320
N 28 Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) 100 360

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
N
Material
HSS
Finish
TiN
Max Cut Depth
1xD
Shank Form
A
Standard
ISO529
Thread Form
UNC
Nut Tolerance
2B
Lead
Bottoming
