ISO TAP T409 Bottoming, metric fine, Spiral Flute, N HSSE Brt
ISO TAP T409 Bottoming, metric fine, Spiral Flute, N HSSE Brt

ISO TAP T409 Bottoming, metric fine, Spiral Flute, N HSSE Brt

£17.33 – £106.20

ISO TAP T409 Bottoming, metric fine, Spiral Flute, N HSSE Brt

SKU: 01t28000001sQvjAAE Categories: ,

Description

ISO TAP T409 Bottoming, metric fine, Spiral Flute, N HSSE Brt.  For general purpose use, blind holes. Suitable for both hand and machine operations. Depths up to approx. 2.5 x d1.

Related products

Range
Features
Application
Specification

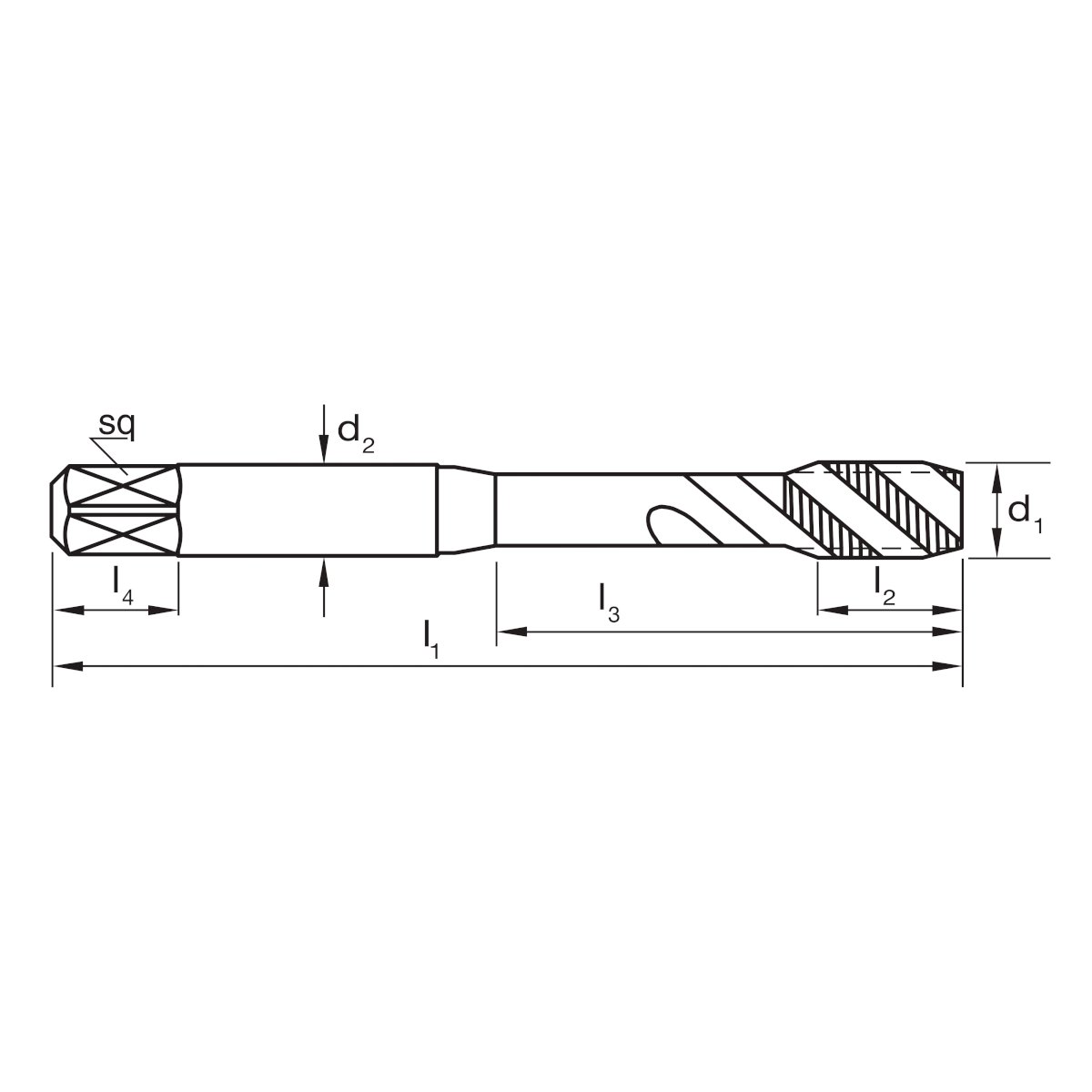

pitemd1limitlengthl1mmlengthl2mmdiameterd2mmsqlengthl4mmzPitch RRP
(inc GST)		 Image Info
T4090503 MF5 ISO 2 / 6H 58 16 5 4 7 3 0.50 £17
  • T4090503
  • MF5
  • ISO 2 / 6H
  • 58
  • 16
  • 5
  • 4
  • 7
  • 3
  • Pack Qty: 1
  • Barcode: 9311963347844
  • Order Multiple: 1
T4090604 MF6 ISO 2 / 6H 66 19 6.3 5 8 3 0.75 £21
  • T4090604
  • MF6
  • ISO 2 / 6H
  • 66
  • 19
  • 6.3
  • 5
  • 8
  • 3
  • Pack Qty: 1
  • Barcode: 9311963347851
  • Order Multiple: 1
T4090805 MF8 ISO 2 / 6H 72 22 8 6.3 9 3 1.00 £20
  • T4090805
  • MF8
  • ISO 2 / 6H
  • 72
  • 22
  • 8
  • 6.3
  • 9
  • 3
  • Pack Qty: 1
  • Barcode: 9311963064468
  • Order Multiple: 1
T4091005 MF10 ISO 2 / 6H 80 24 10 8 11 3 1.00 £21
  • T4091005
  • MF10
  • ISO 2 / 6H
  • 80
  • 24
  • 10
  • 8
  • 11
  • 3
  • Pack Qty: 1
  • Barcode: 9311963347868
  • Order Multiple: 1
T4091006 MF10 ISO 2 / 6H 80 24 10 8 11 3 1.25 £28
  • T4091006
  • MF10
  • ISO 2 / 6H
  • 80
  • 24
  • 10
  • 8
  • 11
  • 3
  • Pack Qty: 1
  • Barcode: 9311963064475
  • Order Multiple: 1
T4091206 MF12 ISO 2 / 6H 89 29 9 7.1 10 3 1.25 £24
  • T4091206
  • MF12
  • ISO 2 / 6H
  • 89
  • 29
  • 9
  • 7.1
  • 10
  • 3
  • Pack Qty: 1
  • Barcode: 9311963347875
  • Order Multiple: 1
T4091207 MF12 ISO 2 / 6H 89 29 9 7.1 10 3 1.50 £38
  • T4091207
  • MF12
  • ISO 2 / 6H
  • 89
  • 29
  • 9
  • 7.1
  • 10
  • 3
  • Pack Qty: 1
  • Barcode: 9311963064482
  • Order Multiple: 1
T4091406 MF14 ISO 2 / 6H 95 30 11.2 9 12 3 1.25 £50
  • T4091406
  • MF14
  • ISO 2 / 6H
  • 95
  • 30
  • 11.2
  • 9
  • 12
  • 3
  • Pack Qty: 1
  • Barcode: 9311963347882
  • Order Multiple: 1
T4091407 MF14 ISO 2 / 6H 95 30 11.2 9 12 3 1.50 £50
  • T4091407
  • MF14
  • ISO 2 / 6H
  • 95
  • 30
  • 11.2
  • 9
  • 12
  • 3
  • Pack Qty: 1
  • Barcode: 9311963347899
  • Order Multiple: 1
T4091607 MF16 ISO 2 / 6H 102 32 12.5 10 13 3 1.50 £35
  • T4091607
  • MF16
  • ISO 2 / 6H
  • 102
  • 32
  • 12.5
  • 10
  • 13
  • 3
  • Pack Qty: 1
  • Barcode: 9311963347905
  • Order Multiple: 1
T4091807 MF18 ISO 2 / 6H 112 37 14 11.2 14 4 1.50 £83
  • T4091807
  • MF18
  • ISO 2 / 6H
  • 112
  • 37
  • 14
  • 11.2
  • 14
  • 4
  • Pack Qty: 1
  • Barcode: 9311963347912
  • Order Multiple: 1
T4092007 MF20 ISO 2 / 6H 112 37 14 11.2 14 4 1.50 £90
  • T4092007
  • MF20
  • ISO 2 / 6H
  • 112
  • 37
  • 14
  • 11.2
  • 14
  • 4
  • Pack Qty: 1
  • Barcode: 9311963347929
  • Order Multiple: 1
T4092207 MF22 ISO 2 / 6H 118 38 16 12.5 16 4 1.50 £106
  • T4092207
  • MF22
  • ISO 2 / 6H
  • 118
  • 38
  • 16
  • 12.5
  • 16
  • 4
  • Pack Qty: 1
  • Barcode: 9311963347936
  • Order Multiple: 1
  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to approx. 2.5 x d1
ISO VDI Description Condition Hardness Strength Optimal
P 1 Steel - Non-alloy, cast & free cutting (~ 0.15 %C) Annealed 125 440
P 2 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Annealed 190 640
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 6 Steel - Low alloy & cast < 5% of alloying elements Annealed 180 610
M 14.1 Stainless Steel - Austenitic Age Hardened 180 610
M 14.2 Stainless Steel - Duplex 250 840
K 17 Cast Iron, Nodular (GGG) - Ferritic 160 570
K 18 Cast Iron, Nodular (GGG) - Pearlitic 250 840
N 21 Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 210
N 22 Aluminum & Magnesium, wrought alloy - Heat Treatable Age Hardened 100 360
N 23 Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable 75 270
N 24 Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable Age Hardened 90 320
N 26 Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% 110 390
N 27 Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) 90 320
N 28 Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) 100 360
H 40 Cast Iron - Chilled Cast 400 1350

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
N
Material
HSSE V3
Finish
Brt
Max Cut Depth
2.5xD
Shank Form
A
Helix Angle
R40
Type
Spiral Flute
Standard
ISO529
Nut Tolerance
ISO 2 / 6H
Lead
Form C / 3 x P
