ISO TAP T399 Forming, metric, single coolant groove , N, Brt
ISO TAP T399 Forming, metric, single coolant groove , N, Brt

ISO TAP T399 Forming, metric, single coolant groove , N, Brt

£19.08 – £39.16

ISO TAP T399 Forming, metric, single coolant groove , N, Brt

SKU: 01t28000001sQtsAAE Categories: ,

Description

ISO TAP T399 Forming, metric, single coolant groove , N, Brt.  For cold forming of threads in materials with good flow characteristics. Through or blind holes. Depths up to approx. 1.5 x d1.

Related products

Range
Features
Application
Specification

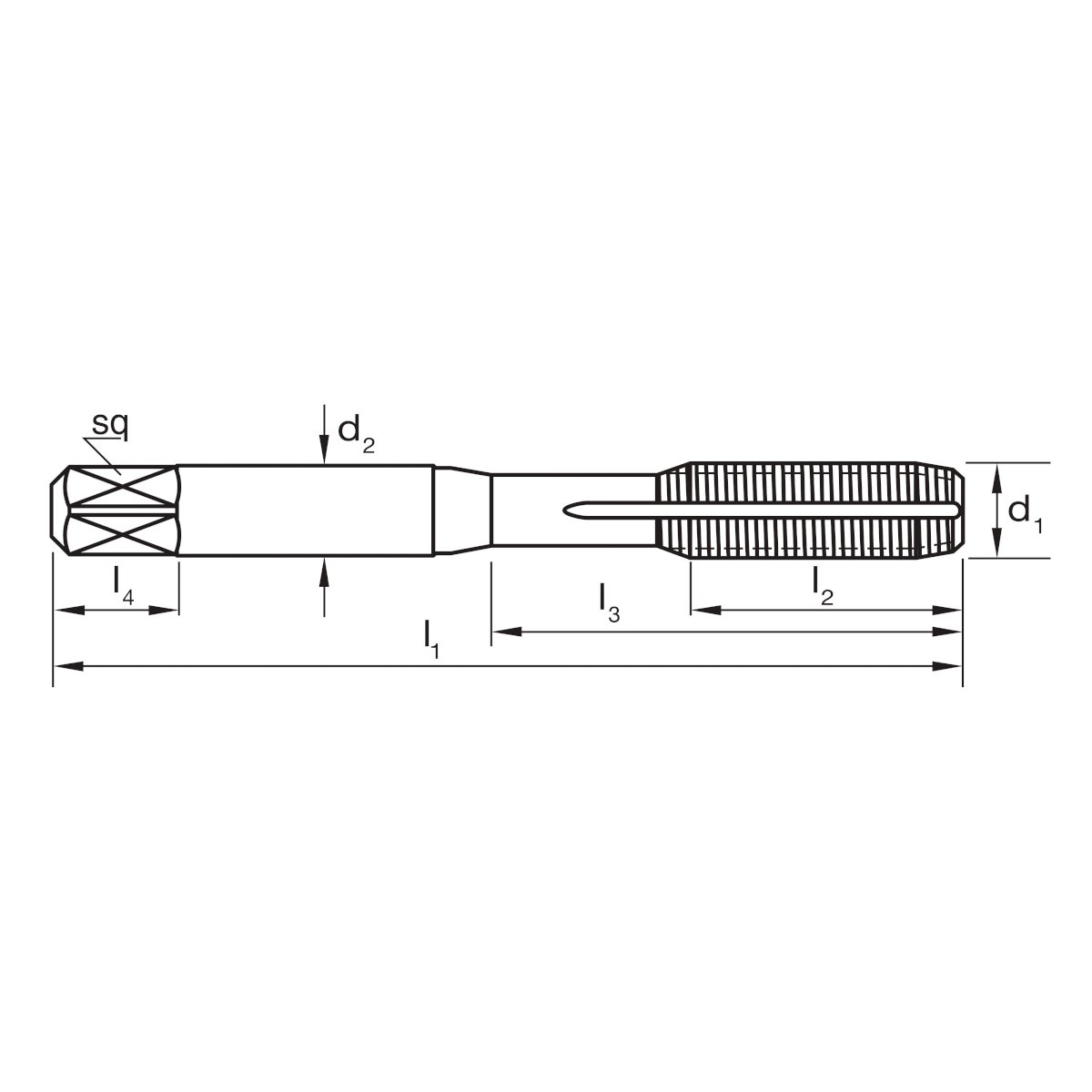

pitemd1limitlengthl1mmlengthl2mmdiameterd2mmsqlengthl4mmPitch RRP
(inc GST)		 Image Info
T3990250 M2.5 GH4 / 6H 45 10 2.8 2.24 5 0.45 £30
  • T3990250
  • M2.5
  • GH4 / 6H
  • 45
  • 10
  • 2.8
  • 2.24
  • 5
  • Pack Qty: 1
  • Barcode: 9311963348049
  • Order Multiple: 1
T3990300 M3 GH4 / 6H 48 11 3.15 2.5 5 0.50 £22
  • T3990300
  • M3
  • GH4 / 6H
  • 48
  • 11
  • 3.15
  • 2.5
  • 5
  • Pack Qty: 1
  • Barcode: 9311963012681
  • Order Multiple: 1
T3990350 M3.5 GH4 / 6H 50 13 3.55 2.8 5 0.60 £24
  • T3990350
  • M3.5
  • GH4 / 6H
  • 50
  • 13
  • 3.55
  • 2.8
  • 5
  • Pack Qty: 1
  • Barcode: 9311963034119
  • Order Multiple: 1
T3990400 M4 GH4 / 6H 53 13 4 3.15 6 0.70 £19
  • T3990400
  • M4
  • GH4 / 6H
  • 53
  • 13
  • 4
  • 3.15
  • 6
  • Pack Qty: 1
  • Barcode: 9311963011455
  • Order Multiple: 1
T3990500 M5 GH4 / 6H 58 16 5 4 7 0.80 £21
  • T3990500
  • M5
  • GH4 / 6H
  • 58
  • 16
  • 5
  • 4
  • 7
  • Pack Qty: 1
  • Barcode: 9311963004525
  • Order Multiple: 1
T3990600 M6 GH4 / 6H 66 19 6.3 5 8 1.00 £21
  • T3990600
  • M6
  • GH4 / 6H
  • 66
  • 19
  • 6.3
  • 5
  • 8
  • Pack Qty: 1
  • Barcode: 9311963009711
  • Order Multiple: 1
T3990800 M8 GH4 / 6H 72 22 8 6.3 9 1.25 £24
  • T3990800
  • M8
  • GH4 / 6H
  • 72
  • 22
  • 8
  • 6.3
  • 9
  • Pack Qty: 1
  • Barcode: 9311963022482
  • Order Multiple: 1
T3991000 M10 GH4 / 6H 80 24 10 8 11 1.50 £29
  • T3991000
  • M10
  • GH4 / 6H
  • 80
  • 24
  • 10
  • 8
  • 11
  • Pack Qty: 1
  • Barcode: 9311963022499
  • Order Multiple: 1
T3991200 M12 GH4 / 6H 89 29 9 7.1 10 1.75 £39
  • T3991200
  • M12
  • GH4 / 6H
  • 89
  • 29
  • 9
  • 7.1
  • 10
  • Pack Qty: 1
  • Barcode: 9311963348070
  • Order Multiple: 1
  • For cold forming of threads in materials with good flow characteristics
  • Through or Blind holes
  • Depths up to approx. 1.5 x d1
  • TiN For longer tool life
ISO VDI Description Condition Hardness Strength Optimal
P 1 Steel - Non-alloy, cast & free cutting (~ 0.15 %C) Annealed 125 440
P 2 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Annealed 190 640
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 6 Steel - Low alloy & cast < 5% of alloying elements Annealed 180 610
N 21 Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 210
N 22 Aluminum & Magnesium, wrought alloy - Heat Treatable Age Hardened 100 360
N 23 Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable 75 270
N 24 Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable Age Hardened 90 320
N 26 Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% 110 390
N 28 Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) 100 360

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
N
Material
HSSE V3
Finish
Brt
Max Cut Depth
1.5xD
Shank Form
A
Type
Fluteless - Single Coolant Groove
Standard
ISO529
Nut Tolerance
GH4 / 6H
Lead
Form C / 3 x P
