DIN TAP T338 Gun, Metric, Extra Length, N, M, Brt
DIN TAP T338 Gun, Metric, Extra Length, N, M, Brt

DIN TAP T338 Gun, Metric, Extra Length, N, M, Brt

£50.67 – £160.19

DIN TAP T338 Gun, Metric, Extra Length, N, M, Brt

SKU: 01t28000001sQmgAAE Categories: ,

Description

DIN TAP T338 Gun, Metric, Extra Length, N, M, Brt. For long reach applications, Suitable for materials up to 1000N/mm2, Depths up to 3 x d1

Related products

Range
Features
Application
Specification

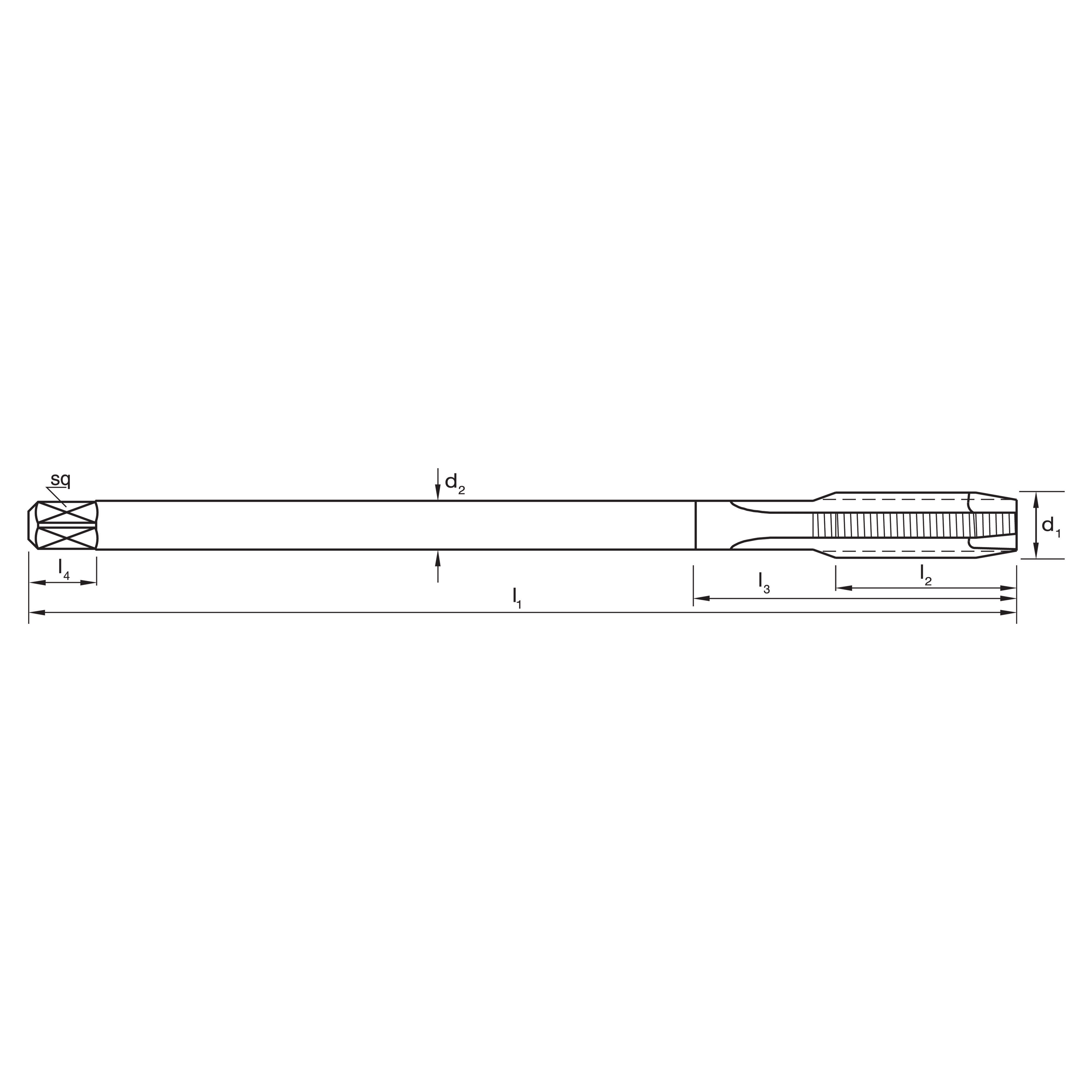

pitemd1Pitchlimitlengthl1mmlengthl2mmlengthl3mmdiameterd2mmsqlengthl4mmz RRP
(inc GST)		 Image Info
T3381000 M10 1.50 ISO 2 / 6H 200 24 100 7 5.5 8 3 £51
  • T3381000
  • M10
  • ISO 2 / 6H
  • 200
  • 24
  • 100
  • 7
  • 5.5
  • 8
  • 3
  • Pack Qty: 1
  • Barcode: 9311963450575
  • Order Multiple: 1
T3381200 M12 1.75 ISO 2 / 6H 220 28 110 9 7 10 3 £58
  • T3381200
  • M12
  • ISO 2 / 6H
  • 220
  • 28
  • 110
  • 9
  • 7
  • 10
  • 3
  • Pack Qty: 1
  • Barcode: 9311963450582
  • Order Multiple: 1
T3381400 M14 2.00 ISO 2 / 6H 220 30 110 11 9 12 3 £76
  • T3381400
  • M14
  • ISO 2 / 6H
  • 220
  • 30
  • 110
  • 11
  • 9
  • 12
  • 3
  • Pack Qty: 1
  • Barcode: 9311963450599
  • Order Multiple: 1
T3381600 M16 2.00 ISO 2 / 6H 220 32 110 12 9 12 3 £82
  • T3381600
  • M16
  • ISO 2 / 6H
  • 220
  • 32
  • 110
  • 12
  • 9
  • 12
  • 3
  • Pack Qty: 1
  • Barcode: 9311963450605
  • Order Multiple: 1
T3382000 M20 2.50 ISO 2 / 6H 280 34 110 16 12 15 4 £135
  • T3382000
  • M20
  • ISO 2 / 6H
  • 280
  • 34
  • 110
  • 16
  • 12
  • 15
  • 4
  • Pack Qty: 1
  • Barcode: 9311963567334
  • Order Multiple: 1
T3382400 M24 3.00 ISO 2 / 6H 320 38 120 18 14.5 17 4 £160
  • T3382400
  • M24
  • ISO 2 / 6H
  • 320
  • 38
  • 120
  • 18
  • 14.5
  • 17
  • 4
  • Pack Qty: 1
  • Barcode: 9311963567341
  • Order Multiple: 1
  • For long reach applications
  • Suitable for materials up to 1000N/mm2
  • Depths up to 3 x d1
  • d2 and sq in accordance to DIN371
ISO VDI Description Condition Hardness Strength Optimal
P 1 Steel - Non-alloy, cast & free cutting (~ 0.15 %C) Annealed 125 440
P 2 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Annealed 190 640
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 6 Steel - Low alloy & cast < 5% of alloying elements Annealed 180 610
P 7 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 275 930
P 10 Steel - High alloy, cast & tool Annealed 200 680
K 15 Cast Iron, Grey (GG) - Ferritic / Pearlitic 180 610
K 17 Cast Iron, Nodular (GGG) - Ferritic 160 570
K 19 Cast Iron, Malleable - Ferritic 130 460
K 20 Cast Iron, Malleable - Pearlitic 230 780
N 21 Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 210
N 22 Aluminum & Magnesium, wrought alloy - Heat Treatable Age Hardened 100 360
N 23 Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable 75 270
N 24 Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable Age Hardened 90 320
N 26 Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% 110 390
N 27 Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) 90 320

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
N
Material
HSSE V3
Finish
Brt
Max Cut Depth
3xD
Shank Form
A
Standard
Sutton
Thread Form
M
Nut Tolerance
ISO 2 / 6H
Lead
Form B / 4.5 x P
