DIN TAP T222 Spiral Flute, Metric, R40, NH Blu
DIN TAP T222 Spiral Flute, Metric, R40, NH Blu

DIN TAP T222 Spiral Flute, Metric, R40, NH Blu

£34.70 – £74.76

DIN TAP T222 Spiral Flute, Metric, R40, NH Blu

SKU: 01t28000001sQYXAA2 Categories: ,

Description

DIN TAP T222 Spiral Flute, Metric, R40, NH Blu. Suitable for harder short chipping materials up to 42 HRC. Blind holes. Depths up to 2.5 x d1

Related products

Range
Features
Application
Specification

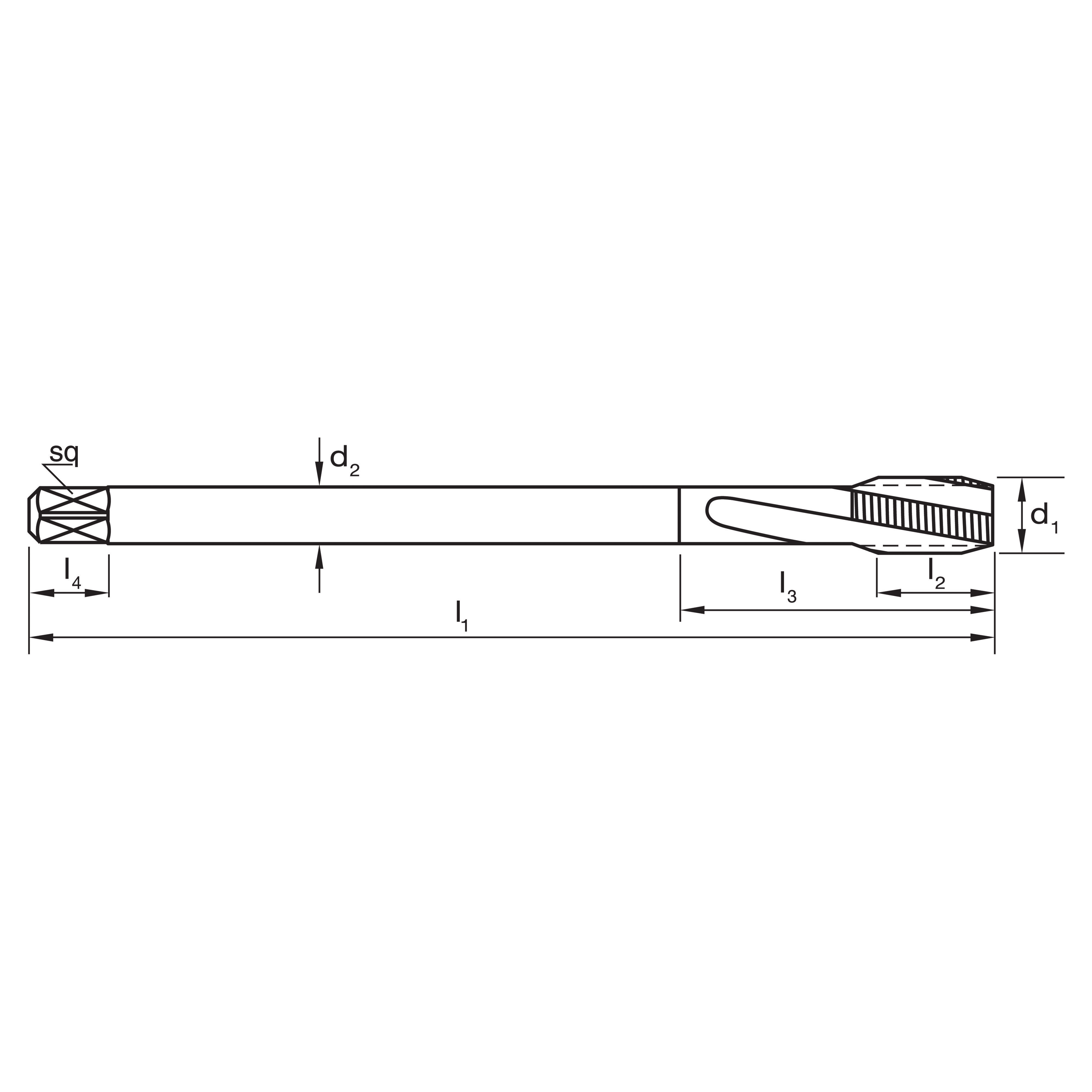

pitemd1Pitchlimitlengthl1mmlengthl2mmdiameterd2mmsqlengthl4mmz RRP
(inc GST)		 Image Info
T2221200 M12 1.75 ISO 2 / 6H 110 17.5 9 7 10 3 £35
  • T2221200
  • M12
  • ISO 2 / 6H
  • 110
  • 17.5
  • 9
  • 7
  • 10
  • 3
  • Pack Qty: 1
  • Barcode: 9311963412146
  • Order Multiple: 1
T2221400 M14 2 ISO 2 / 6H 110 20 11 9 12 3 £45
  • T2221400
  • M14
  • ISO 2 / 6H
  • 110
  • 20
  • 11
  • 9
  • 12
  • 3
  • Pack Qty: 1
  • Barcode: 9311963412153
  • Order Multiple: 1
T2221600 M16 2 ISO 2 / 6H 110 20 12 9 12 3 £51
  • T2221600
  • M16
  • ISO 2 / 6H
  • 110
  • 20
  • 12
  • 9
  • 12
  • 3
  • Pack Qty: 1
  • Barcode: 9311963412160
  • Order Multiple: 1
T2221800 M18 2.5 ISO 2 / 6H 125 25 14 11 14 4 £69
  • T2221800
  • M18
  • ISO 2 / 6H
  • 125
  • 25
  • 14
  • 11
  • 14
  • 4
  • Pack Qty: 1
  • Barcode: 9311963412177
  • Order Multiple: 1
T2222000 M20 2.5 ISO 2 / 6H 140 25 16 12 15 4 £75
  • T2222000
  • M20
  • ISO 2 / 6H
  • 140
  • 25
  • 16
  • 12
  • 15
  • 4
  • Pack Qty: 1
  • Barcode: 9311963412184
  • Order Multiple: 1
  • Suitable for harder short chipping materials up to 42 HRc
  • Blind holes
  • Depths up to 2.5 x d1
ISO VDI Description Condition Hardness Strength Optimal
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 5 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Quenched & Tempered 300 1010
P 7 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 275 930
P 8 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 300 1010
P 10 Steel - High alloy, cast & tool Annealed 200 680
P 12 Steel - Corrosion resistant & cast - Ferritic / Martensitic Annealed 200 680
M 14.1 Stainless Steel - Austenitic Age Hardened 180 610
M 14.2 Stainless Steel - Duplex 250 840
M 14.3 Stainless Steel - Precipitation Hardening 250 840
K 15 Cast Iron, Grey (GG) - Ferritic / Pearlitic 180 610
K 16 Cast Iron, Grey (GG) - Pearlitic 260 880
K 17 Cast Iron, Nodular (GGG) - Ferritic 160 570
K 18 Cast Iron, Nodular (GGG) - Pearlitic 250 840
K 19 Cast Iron, Malleable - Ferritic 130 460
K 20 Cast Iron, Malleable - Pearlitic 230 780
H 40 Cast Iron - Chilled Cast 400 1350

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
NH
Material
PM-HSSE V3
Finish
Blu
Max Cut Depth
2.5xD
Shank Form
A
Helix Angle
R40
Standard
DIN376
Thread Form
M
Nut Tolerance
ISO 2 / 6H
Lead
Form C / 3 x P
