DIN TAP T184 Spiral Flute, Metric, R15, N, Brt
DIN TAP T184 Spiral Flute, Metric, R15, N, Brt

DIN TAP T184 Spiral Flute, Metric, R15, N, Brt

£18.03 – £40.94

DIN TAP T184 Spiral Flute, Metric, R15, N, Brt

SKU: 01t28000001sQUmAAM Categories: ,

Description

DIN TAP T184 Spiral Flute, Metric, R15, N, Brt. General purpose use. Suitable for materials up to 1000N/mm2. Blind holes. Depths up to 1.5 x d1

Related products

Range
Features
Application
Specification

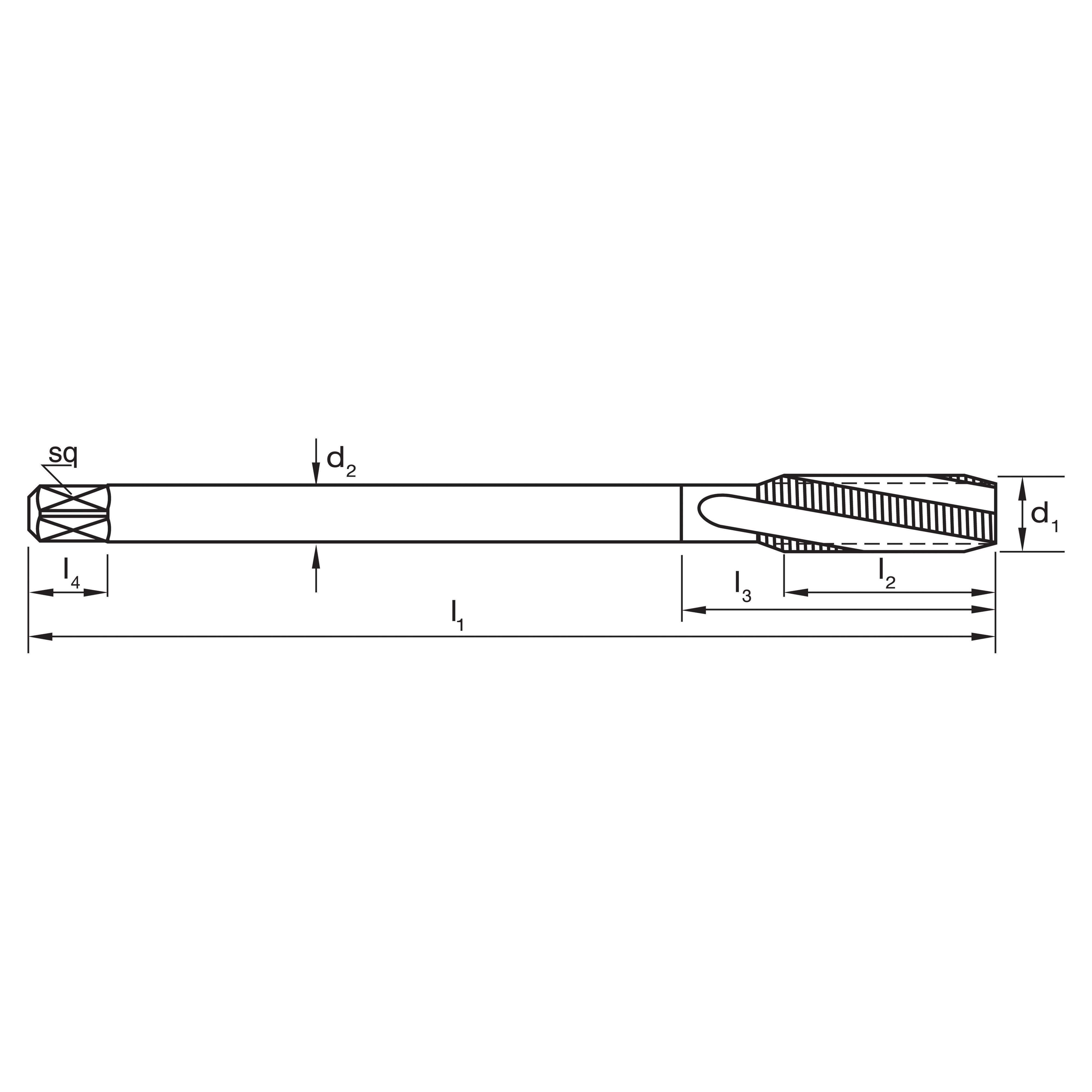

pitemd1Pitchlimitlengthl1mmlengthl2mmdiameterd2mmsqlengthl4mmz RRP
(inc GST)		 Image Info
T1841200 M12 1.75 ISO 2 / 6H 110 28 9 7 10 3 £18
  • T1841200
  • M12
  • ISO 2 / 6H
  • 110
  • 28
  • 9
  • 7
  • 10
  • 3
  • Pack Qty: 1
  • Barcode: 9311963401133
  • Order Multiple: 1
T1841400 M14 2 ISO 2 / 6H 110 30 11 9 12 3 £23
  • T1841400
  • M14
  • ISO 2 / 6H
  • 110
  • 30
  • 11
  • 9
  • 12
  • 3
  • Pack Qty: 1
  • Barcode: 9311963401140
  • Order Multiple: 1
T1841600 M16 2 ISO 2 / 6H 110 32 12 9 12 4 £27
  • T1841600
  • M16
  • ISO 2 / 6H
  • 110
  • 32
  • 12
  • 9
  • 12
  • 4
  • Pack Qty: 1
  • Barcode: 9311963401157
  • Order Multiple: 1
T1841800 M18 2.5 ISO 2 / 6H 125 34 14 11 14 4 £38
  • T1841800
  • M18
  • ISO 2 / 6H
  • 125
  • 34
  • 14
  • 11
  • 14
  • 4
  • Pack Qty: 1
  • Barcode: 9311963401164
  • Order Multiple: 1
T1842000 M20 2.5 ISO 2 / 6H 140 34 16 12 15 4 £41
  • T1842000
  • M20
  • ISO 2 / 6H
  • 140
  • 34
  • 16
  • 12
  • 15
  • 4
  • Pack Qty: 1
  • Barcode: 9311963401126
  • Order Multiple: 1
  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 1.5 x d1
ISO VDI Description Condition Hardness Strength Optimal
P 1 Steel - Non-alloy, cast & free cutting (~ 0.15 %C) Annealed 125 440
P 2 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Annealed 190 640
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 6 Steel - Low alloy & cast < 5% of alloying elements Annealed 180 610
P 7 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 275 930
P 10 Steel - High alloy, cast & tool Annealed 200 680
K 15 Cast Iron, Grey (GG) - Ferritic / Pearlitic 180 610
K 17 Cast Iron, Nodular (GGG) - Ferritic 160 570
K 19 Cast Iron, Malleable - Ferritic 130 460
K 20 Cast Iron, Malleable - Pearlitic 230 780
N 21 Aluminum & Magnesium, wrought alloy - Non Heat Treatable 60 210
N 22 Aluminum & Magnesium, wrought alloy - Heat Treatable Age Hardened 100 360
N 23 Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable 75 270
N 24 Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable Age Hardened 90 320
N 26 Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% 110 390
N 27 Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) 90 320

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
N
Material
HSSE V3
Finish
Brt
Max Cut Depth
1.5xD
Shank Form
A
Helix Angle
R15
Standard
DIN376
Thread Form
M
Nut Tolerance
ISO 2 / 6H
Lead
Form C / 3 x P
