DIN TAP T134 Gun, Metric, VA DH, M, Blu
DIN TAP T134 Gun, Metric, VA DH, M, Blu

DIN TAP T134 Gun, Metric, VA DH, M, Blu

£15.20 – £22.22

DIN TAP T134 Gun, Metric, VA DH, M, Blu

SKU: 01t28000001sQNdAAM Categories: ,

Description

DIN TAP T134 Gun, Metric, VA DH, M, Blu.  Suitable for harder materials up to 42 HRC.  Through holes. Depths up to 3 x d1

Related products

Range
Features
Application
Specification

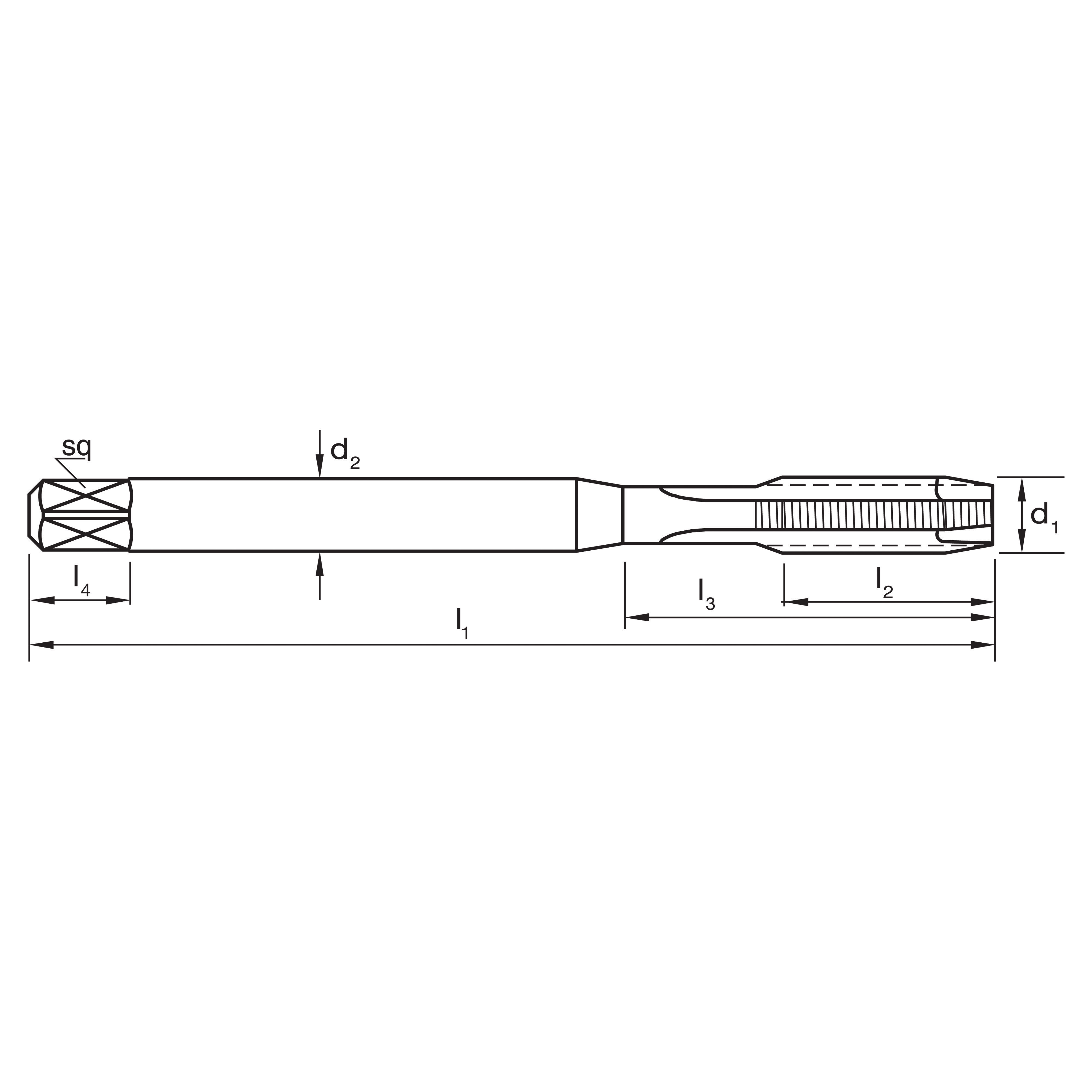

pitemd1Pitchlimitlengthl1mmlengthl2mmlengthl3mmdiameterd2mmsqlengthl4mmz RRP
(inc GST)		 Image Info
T1340300 M3 0.5 ISO 2 / 6H 56 11 18 3.5 2.7 6 3 £15
  • T1340300
  • M3
  • ISO 2 / 6H
  • 56
  • 11
  • 18
  • 3.5
  • 2.7
  • 6
  • 3
  • Pack Qty: 1
  • Barcode: 9311963412283
  • Order Multiple: 1
T1340400 M4 0.7 ISO 2 / 6H 63 13 21 4.5 3.4 6 3 £15
  • T1340400
  • M4
  • ISO 2 / 6H
  • 63
  • 13
  • 21
  • 4.5
  • 3.4
  • 6
  • 3
  • Pack Qty: 1
  • Barcode: 9311963412290
  • Order Multiple: 1
T1340500 M5 0.8 ISO 2 / 6H 70 16 25 6 4.9 8 3 £15
  • T1340500
  • M5
  • ISO 2 / 6H
  • 70
  • 16
  • 25
  • 6
  • 4.9
  • 8
  • 3
  • Pack Qty: 1
  • Barcode: 9311963412306
  • Order Multiple: 1
T1340600 M6 1 ISO 2 / 6H 80 19 30 6 4.9 8 3 £15
  • T1340600
  • M6
  • ISO 2 / 6H
  • 80
  • 19
  • 30
  • 6
  • 4.9
  • 8
  • 3
  • Pack Qty: 1
  • Barcode: 9311963412313
  • Order Multiple: 1
T1340800 M8 1.25 ISO 2 / 6H 90 22 35 8 6.2 9 3 £18
  • T1340800
  • M8
  • ISO 2 / 6H
  • 90
  • 22
  • 35
  • 8
  • 6.2
  • 9
  • 3
  • Pack Qty: 1
  • Barcode: 9311963412320
  • Order Multiple: 1
T1341000 M10 1.5 ISO 2 / 6H 100 24 39 10 8 11 3 £22
  • T1341000
  • M10
  • ISO 2 / 6H
  • 100
  • 24
  • 39
  • 10
  • 8
  • 11
  • 3
  • Pack Qty: 1
  • Barcode: 9311963412337
  • Order Multiple: 1
  • Suitable for harder short chipping materials up to 42 HRc
  • Through holes
  • Depths up to 3 x d1
ISO VDI Description Condition Hardness Strength Optimal
P 3 Steel - Non-alloy, cast & free cutting (~ 0.45 %C) Quenched & Tempered 250 840
P 4 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Annealed 270 910
P 5 Steel - Non-alloy, cast & free cutting (~ 0.75 %C) Quenched & Tempered 300 1010
P 7 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 275 930
P 8 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 300 1010
P 9 Steel - Low alloy & cast < 5% of alloying elements Quenched & Tempered 350 1180
P 10 Steel - High alloy, cast & tool Annealed 200 680
P 11 Steel - High alloy, cast & tool Hardened & Tempered 325 1100
P 12 Steel - Corrosion resistant & cast - Ferritic / Martensitic Annealed 200 680
P 13 Steel - Corrosion resistant & cast - Martensitic Quenched & Tempered 240 810
M 14.1 Stainless Steel - Austenitic Age Hardened 180 610
M 14.2 Stainless Steel - Duplex 250 840
M 14.3 Stainless Steel - Precipitation Hardening 250 840
K 15 Cast Iron, Grey (GG) - Ferritic / Pearlitic 180 610
K 16 Cast Iron, Grey (GG) - Pearlitic 260 880
K 17 Cast Iron, Nodular (GGG) - Ferritic 160 570
K 18 Cast Iron, Nodular (GGG) - Pearlitic 250 840
K 19 Cast Iron, Malleable - Ferritic 130 460
K 20 Cast Iron, Malleable - Pearlitic 230 780
H 40 Cast Iron - Chilled Cast 400 1350

KEY

Optimal Effective PSteel MStainless KCast Iron NNon-Ferous Metals STitanium & Super Alloys HHard Materials
Designation
NH
Material
PM-HSSE V3
Finish
Blu
Max Cut Depth
3xD
Shank Form
A
Standard
DIN371
Thread Form
M
Nut Tolerance
ISO 2 / 6H
Lead
Form B / 4.5 x P
